F/TCW05 | Digisound

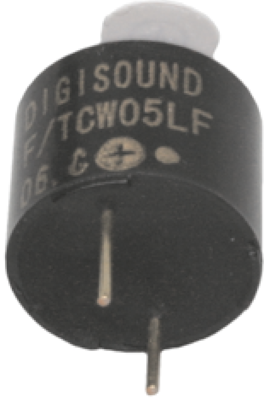

Signal transmitter, 85 dB, 5 VDC, 30 mA, black, F/TCW05
Order No.: 36M455
EAN: 4099891541972
MPN:
F/TCW05
Unit Price (€ / pc.)
2.2967 € *
Available: 367 pcs.
Next delivery: 1,000 pcs. on 2026-03-13
Total Price:
2.30 € *
Price list
Quantity
Price per unit*
1 pcs.
2.2967 €
25 pcs.
1.9516 €
100 pcs.
1.8088 €
250 pcs.
1.7017 €
1000 pcs.
1.5589 €
*incl. VAT plus shipping costs
Subject to prior sale
Buzzers, type Digisound F/TCW.

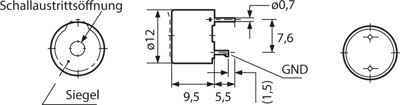

Electromagnetic operation, with integrated oscillator circuit, for PCB mounting with 7.6 mm grid; Current consumption: max. 30 mA. Frequency: 2.3 kHz ±300 Hz. Sound pressure level: min. 85 dB/0.1 m. Sound mode: constant tone. Operating temperatures: –40 to +85 °C. Dimensions: D 12 x 9.5 mm. Weight: 2.0 g. Features: epoxy molded circuit, sealing of the horn for automatic solder processing, penetrating and pleasant tone, compact design, suitable for low temperatures, high sound pressure level, highly reliable and low current consumption.
Technical attributes (type, operating voltage /rated voltage): F/TCW 05, 4.0 to 6.5 V/5.0 VDC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Sound pressure level | 85 db | |
| Resonance frequency | 2300 Hz | |
| Voltage | 5 VDC | |
| Version | signal transmitter | |
| Rated current | 30 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85318070 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
