F/SWB24 | Digisound
Signal transmitter, 80 dB, 24 VDC, 20 mA, gray, F/SWB24
Order No.: 36M360
EAN: 4099891541705
MPN:
F/SWB24
Unit Price (€ / pc.)
3.5224 € *
Available: 174 pcs.
Next delivery: 300 pcs. on 2025-11-25

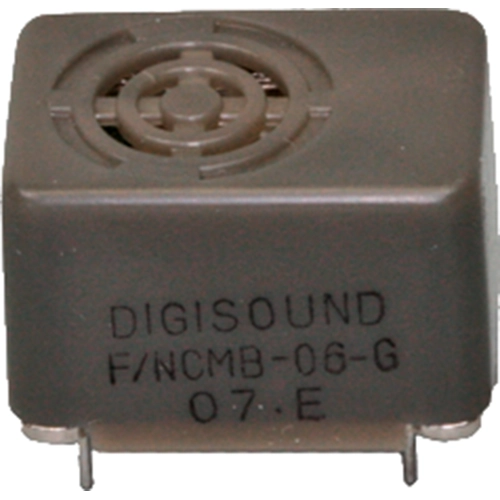

Buzzers, type Digisound F/SWB und F/NCMB.
With electronic system, two designs; Sound mode: constant (type F/NCMB can be operated with and without triggering). Operating temperatures: –40 to +80 °C. Weight: 10 g. Features: long useful life and reliability, low current consumption. Penetrating sound, with harmonics.

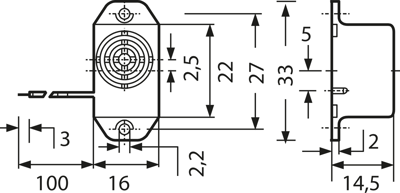

With mounting straps and 100 mm stranded hookup wires, type F/SWB.
Sound pressure level min. 80 db/0.1 m. Types SWB-06 and –12 are UL-listed.
Technical attributes (type, operating voltage/rated voltage, current consumption): F/SWB 24, 16 to 30 V/24 VDC, 20 mA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Voltage | 24 VDC | |
| Resonance frequency | 400 Hz | |
| Sound pressure level | 80 db | |
| Colour | gray | |
| Version | signal transmitter | |
| Rated current | 20 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85318070 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
