F/SWB06 | Digisound
Signal transmitter, 80 dB, 6 VDC, 20 mA, black, F/SWB06
Order No.: 36M356
EAN: 4099891541682
MPN:
F/SWB06
Unit Price (€ / pc.)
4.8076 € *
Next delivery: 50 pcs. on 2025-10-21
Total Price:
4.81 € *
Price list
Quantity
Price per unit*
1 pcs.
4.8076 €
25 pcs.
4.5458 €
50 pcs.
4.3078 €
100 pcs.
4.0341 €
200 pcs.
3.7842 €
*incl. VAT plus shipping costs
Subject to prior sale

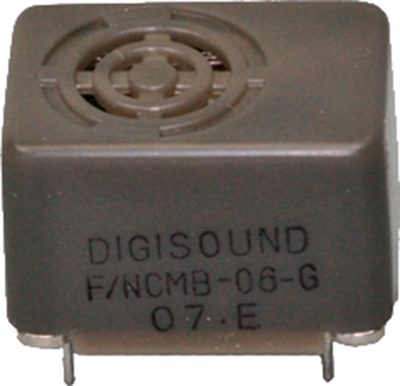

Buzzers, type Digisound F/SWB und F/NCMB.
With electronic system, two designs; Sound mode: constant (type F/NCMB can be operated with and without triggering). Operating temperatures: –40 to +80 °C. Weight: 10 g. Features: long useful life and reliability, low current consumption. Penetrating sound, with harmonics.

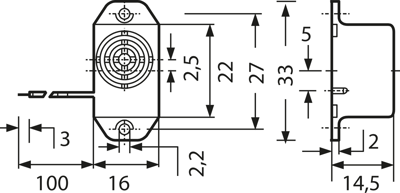

With mounting straps and 100 mm stranded hookup wires, type F/SWB.
Sound pressure level min. 80 db/0.1 m. Types SWB-06 and –12 are UL-listed.
Technical attributes (type, operating voltage/rated voltage, current consumption): F/SWB 06, 3.0 to 7.0 V/6.0 VDC, 20 mA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Resonance frequency | 400 Hz | |
| Voltage | 6 VDC | |
| Version | signal transmitter | |
| Sound pressure level | 80 db | |
| Rated current | 20 mA |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85318040 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
