F/PWB06 | Digisound
Signal transmitter, 92 dB, 6 VDC, 35 mA, black, F/PWB06
Order No.: 36M390
EAN: 4099891541798
MPN:
F/PWB06
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
2.8084 € *
Standard delivery time from the manufacturer is: 23 Weeks

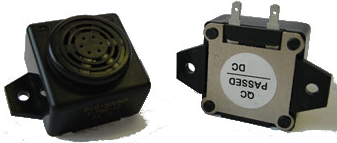

Buzzers, type Digisound F/YWB und F/PWB.
With electronic circuit, high reliability, low consumption, penetrating sound filled with harmonics; Current consumption: max. 35 mA. Frequency: 400 Hz. Sound mode: constant. Operating temperatures: –40 to +70 °C. Weight: 17 g.

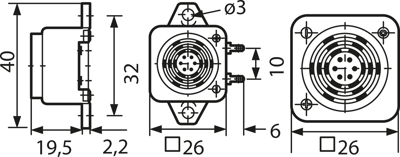

Buzzers with straps for screw mounting, solder terminals, type F/PWB.
Sound volume: min. 92 dB/0.1 m,
Technical attributes (type, operating voltage /rated voltage): F/PWB 06, 4.0 to 8.0 V/6.0 VDC
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | signal transmitter | |
| Sound pressure level | 92 db | |
| Voltage | 6 VDC | |
| Rated current | 35 mA | |
| Colour | black | |
| Resonance frequency | 400 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85318040 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
