F/NRMB24 | Digisound
Signal transmitter, 75 dB, 24 VDC, 21 mA, black, F/NRMB24
Order No.: 36M434
EAN: 4099891541941
MPN:
F/NRMB24
Unit Price (€ / pc.)
5.3907 € *
Available: 215 pcs.
Next delivery: 300 pcs. on 2025-11-21
Total Price:
5.39 € *
Price list
Quantity
Price per unit*
1 pcs.
5.3907 €
10 pcs.
4.7481 €
100 pcs.
4.1650 €
250 pcs.
3.9984 €
1000 pcs.
3.7485 €
*incl. VAT plus shipping costs
Subject to prior sale

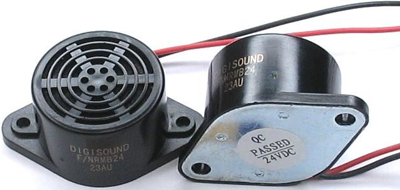

Buzzers, type Digisound F/NRMB.

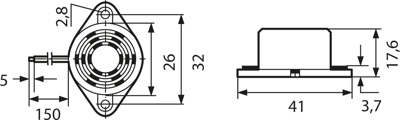

With electronic system, mounting straps and 150 mm hook-up stranded wires; Sound pressure level: min. 75 dB/1.0 m. Sound type: permanent. Operating temperatures: –40 to +80 °C. Dimensions: D 26.4 x 17.6 mm. Weight: 17 g. Features: penetrating sound with harmonics, low current consumption, long useful life and high reliability, UL-listed.
Technical attributes (type, operating voltage/rated voltage, current consumption): F/NRMB 24, 20 to 28 V/24 VDC, 21 mA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Resonance frequency | 400 Hz | |
| Version | signal transmitter | |
| Sound pressure level | 75 db | |
| Rated current | 21 mA | |
| Voltage | 24 VDC | |
| Installation diameter | 26.4 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85318070 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
