F/NRMB12 BLACK | Digisound

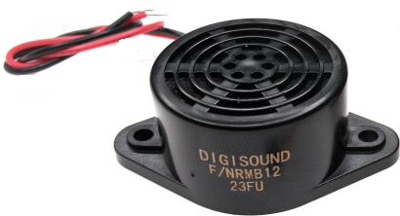

Signal transmitter, 75 dB, 12 VDC, 23 mA, black, F/NRMB12 BLACK
Order No.: 36M432
EAN: 4099891541934
MPN:
F/NRMB12 BLACK
Unit Price (€ / pc.)
6.4498 € *
Next delivery: 150 pcs. on 2025-10-30
Total Price:
6.45 € *
Price list
Quantity
Price per unit*
1 pcs.
6.4498 €
10 pcs.
5.6882 €
100 pcs.
4.9861 €
250 pcs.
4.7838 €
1000 pcs.
4.4863 €
*incl. VAT plus shipping costs
Subject to prior sale
Buzzers, type Digisound F/NRMB.

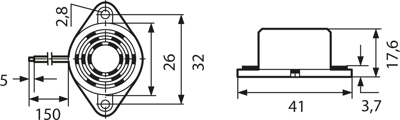

With electronic system, mounting straps and 150 mm hook-up stranded wires; Sound pressure level: min. 75 dB/1.0 m. Sound type: permanent. Operating temperatures: –40 to +80 °C. Dimensions: D 26.4 x 17.6 mm. Weight: 17 g. Features: penetrating sound with harmonics, low current consumption, long useful life and high reliability, UL-listed.
Technical attributes (type, operating voltage/rated voltage, current consumption): F/NRMB 12, 7.0 to 16 V/12 VDC, 23 mA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Resonance frequency | 400 Hz | |
| Installation diameter | 26.4 mm | |
| Colour | black | |
| Rated current | 23 mA | |
| Voltage | 12 VDC | |
| Sound pressure level | 75 db | |
| Version | signal transmitter |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318070 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
