F/NRMB06 | Digisound
Signal transmitter, 75 dB, 6 VDC, 33 mA, black, F/NRMB06
Order No.: 36M430
EAN: 4099891541927
MPN:
F/NRMB06
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
3.5819 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
358.19 € *
Price list
Quantity
Price per unit*
100 pcs.
3.5819 €
150 pcs.
3.3915 €
200 pcs.
3.2130 €
*incl. VAT plus shipping costs
Subject to prior sale

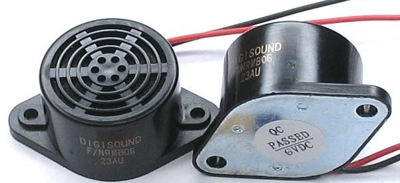

Buzzers, type Digisound F/NRMB.

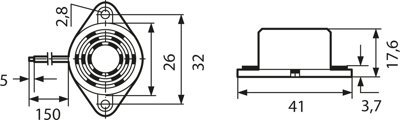

With electronic system, mounting straps and 150 mm hook-up stranded wires; Sound pressure level: min. 75 dB/1.0 m. Sound type: permanent. Operating temperatures: –40 to +80 °C. Dimensions: D 26.4 x 17.6 mm. Weight: 17 g. Features: penetrating sound with harmonics, low current consumption, long useful life and high reliability, UL-listed.
Technical attributes (type, operating voltage/rated voltage, current consumption): F/NRMB 06, 4.0 to 8.0 V/6.0 VDC, 33 mA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | signal transmitter | |
| Sound pressure level | 75 db | |
| Voltage | 6 VDC | |
| Rated current | 33 mA | |
| Installation diameter | 26.4 mm | |
| Colour | black | |
| Resonance frequency | 400 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318040 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
