F/NCMB12 BLACK | Digisound
Signal transmitter, 76 dB, 12 VDC, 15 mA, gray, F/NCMB12 BLACK
Order No.: 36M352
EAN: 4099891541668
MPN:
F/NCMB12 BLACK
Unit Price (€ / pc.)
3.9984 € *
Available: 31 pcs.
Total Price:
4.00 € *
Price list
Quantity
Price per unit*
1 pcs.
3.9984 €
10 pcs.
3.6057 €
50 pcs.
3.1654 €
100 pcs.
2.6775 €
*incl. VAT plus shipping costs
Subject to prior sale

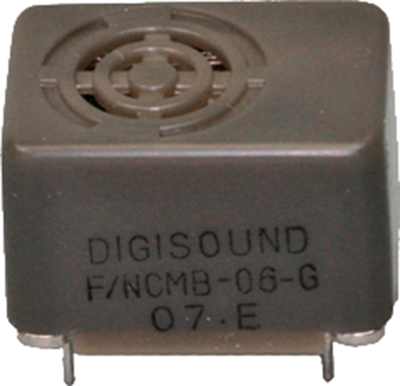

Buzzers, type Digisound F/SWB und F/NCMB.
With electronic system, two designs; Sound mode: constant (type F/NCMB can be operated with and without triggering). Operating temperatures: –40 to +80 °C. Weight: 10 g. Features: long useful life and reliability, low current consumption. Penetrating sound, with harmonics.
For PCB mounting, type F/NCMB.
Sound pressure level min. 76 db/0.1m.
Technical attributes (type, operating voltage/rated voltage, current consumption): F/NCMB 12, 8.0 to 16 V/12 VDC, 15 mA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | gray | |
| Sound pressure level | 76 db | |
| Resonance frequency | 400 Hz | |
| Version | signal transmitter | |
| Voltage | 12 VDC | |
| Rated current | 15 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318070 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
