F/NCMB 06 | Digisound

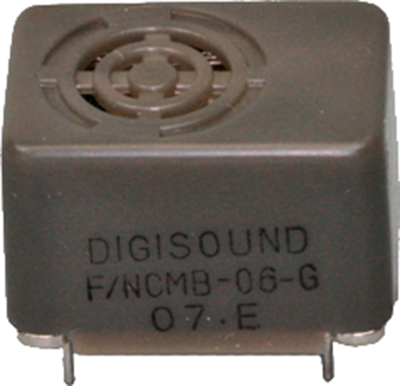

Signal transmitter, 76 dB, 6 VDC, 23 mA, gray, F/NCMB 06
Order No.: 36M350
EAN: 4099891541651
MPN:
F/NCMB 06
Unit Price (€ / pc.)
3.3082 € *
Standard delivery time from the manufacturer is: 23 Weeks
Buzzers, type Digisound F/SWB und F/NCMB.
With electronic system, two designs; Sound mode: constant (type F/NCMB can be operated with and without triggering). Operating temperatures: –40 to +80 °C. Weight: 10 g. Features: long useful life and reliability, low current consumption. Penetrating sound, with harmonics.
For PCB mounting, type F/NCMB.
Sound pressure level min. 76 db/0.1m.
Technical attributes (type, operating voltage/rated voltage, current consumption): F/NCMB 06, 3.0 to 8.0 V/6.0 VDC, 23 mA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | signal transmitter | |
| Sound pressure level | 76 db | |
| Voltage | 6 VDC | |
| Rated current | 23 mA | |
| Colour | gray | |
| Resonance frequency | 400 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318040 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
