F/HU110MC24V-IP67B | Digisound

Siren, 112 dB, 100 VDC, 300 mA, black, F/HU110MC24V-IP67B

Order No.: 32M904
EAN: 4099891541415
MPN:
F/HU110MC24V-IP67B

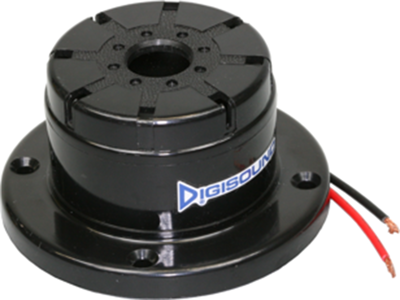

F/HU110MC24V-IP67B Digisound Acoustic Signal Transmitters Image 1
F/HU110MC24V-IP67B Digisound Acoustic Signal Transmitters Image 2
Image may differ
Unit Price (€ / pc.)
32.7964 € *
Available: 0 pcs.
Leadtime: 23 Weeks **
Total Price:
32.80 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
32.7964 €

Sirens, type Digisound F/HU 110.

Piezoelectric alarm siren for indoor and outdoor operation, with high reliability and long useful life; Degree of protection: IP 67. Weight: 100 g. Color: black.

For wall mounting, type F/HU 110 MS-Eurosound.

Sound mode: permanent or intermittent. Frequency: 2.8 to 3.2 kHz. Current consumption: 12/24 V: max. 300/200 mA. Operating temperatures: –20 to +80°C. Sound pressure level on 12/24 V: min. 100/110 dB/1.0 m.

Technical attributes (type, operating voltage/rated voltage, sound mode): F/HU 110 M, 9 to 28 V/Ns 24 VDC, permanent

Technical specifications
Colour black
Resonance frequency 2800 Hz
Rated current 300 mA
Sound pressure level 112 db
Version siren
Voltage 100 VDC
Logistics
Country of origin CN
Customs tariff number 85318040
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead titanium trioxide
SVHC free No
RoHS conform Yes
