F/HU110C24V-IP67B | Digisound
Siren, 110 dB, 24 VDC, 300 mA, black, F/HU110C24V-IP67B
Order No.: 32M763
EAN: 4099891541293
MPN:
F/HU110C24V-IP67B
Unit Price (€ / pc.)
30.5592 € *
Next delivery: 25 pcs. on 2025-09-10
Total Price:
30.56 € *
Price list
Quantity
Price per unit*
1 pcs.
30.5592 €
10 pcs.
28.1078 €
50 pcs.
25.5850 €
100 pcs.
23.0265 €
*incl. VAT plus shipping costs
Subject to prior sale

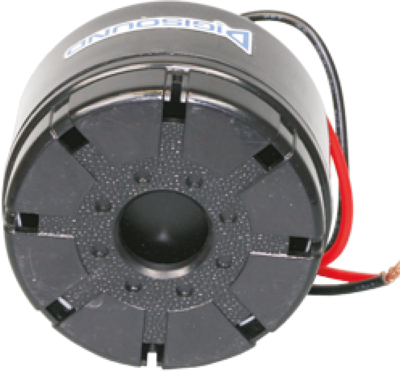

Sirens, type Digisound F/HU 110.
Piezoelectric alarm siren for indoor and outdoor operation, with high reliability and long useful life; Degree of protection: IP 67. Weight: 100 g. Color: black.

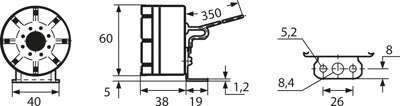

For bracket mounting, type F/HU 110.
Sound mode: permanent or intermittent. Frequency: 2.8 to 3.2 kHz. Current consumption: 12/24 V: max. 300/200 mA. Operating temperatures: –20 to +80°C. Sound pressure level on 12/24 V: min. 100/110 dB/1.0 m.
Technical attributes (type, operating voltage/rated voltage, sound mode): F/HU 110, 9 to 28 V/24 VDC, permanent
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Resonance frequency | 2800 Hz | |
| Sound pressure level | 110 db | |
| Rated current | 300 mA | |
| Version | siren | |
| Voltage | 24 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318070 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead, Lead titanium zirconium oxide |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
