F/HU100MP | Digisound
Siren, 87 dB, 6 VDC, 35 mA, 2.8 kHz, white, F/HU100MP
Order No.: 32M880
EAN: 4099891541378
MPN:
F/HU100MP
Unit Price (€ / pc.)
25.2875 € *
Available: 8 pcs.
Total Price:
25.29 € *
Price list
Quantity
Price per unit*
1 pcs.
25.2875 €
10 pcs.
22.2649 €
50 pcs.
20.7298 €
150 pcs.
19.8373 €
500 pcs.
18.8139 €
*incl. VAT plus shipping costs
Subject to prior sale

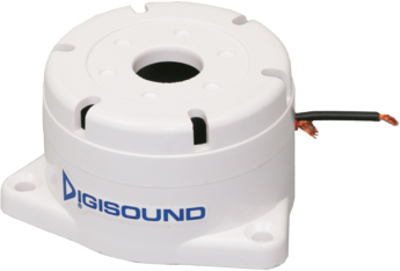

Sirens, type Digisound F/HU 100.
Alarm siren with penetrating sound, stable design, with three mounting flanges; Degree of protection: IP 67. Operating voltage: 6.0 to 30 VDC. Current consumption on 12 V/24 V: 25/35 mA. Frequency: 3.0 kHz. Sound pressure level on 12/24 V: 87/97 dB/1.0 m. Features: rugged, reliable, long useful life, no RF interference.
Type: F/HU 100 P, with intermittent sound
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | siren | |
| Resonance frequency | 3000 Hz | |
| Voltage | 6 VDC | |
| Max. transmission range | 2.8 kHz | |
| Colour | white | |
| Rated current | 35 mA | |
| Sound pressure level | 87 db |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85318070 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, Lead titanium zirconium oxide |
| RoHS conform | Yes |
