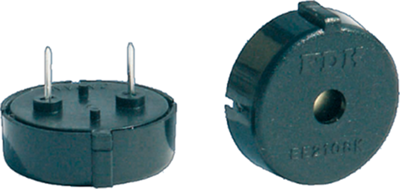

Piezo buzzers, type Digisound F/EE21P-01 LF.

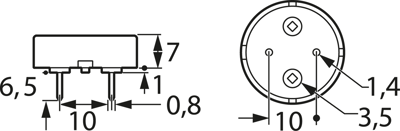

Without electronic system, for PCB mounting; Operating voltage: 3.0 to 30 VDC. Frequency: 4.0 kHz ±0.5 kHz. Sound pressure level: min. 75 dB. Capacitance: 17 nF ±30 %. Operating temperatures: –20 to +70 °C. Dimensions: D 22 x 7.0 mm. Weight: 2.0 g.
Type: F/EE21P–01 LF, buzzer
Version | piezo signal transmitter | |
Colour | black | |
Rated current | 3 mA | |
Resonance frequency | 4000 Hz | |
Sound pressure level | 80 db | |
Voltage | 3 VDC |
Country of origin | CN |
Customs tariff number | 85318070 |
RoHS conform | Yes |
Date of RoHS guidelines | 3/31/15 |
SVHC free | Yes |
Substance description | Lead, Lead titanium zirconium oxide |
