F/DG 111 P | Digisound

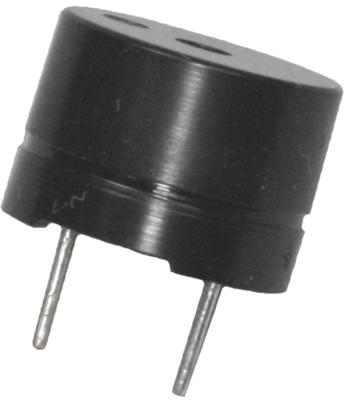

Signal transmitter, 80 dB, 1.5 VDC, 20 mA, black, F/DG 111 P
Order No.: 36M470
EAN: 4099891541996
MPN:
F/DG 111 P
Unit Price (€ / pc.)
0.9401 € *
Available: 4,824 pcs.
Total Price:
9.40 € *
Price list
Quantity
Price per unit*
10 pcs.
0.9401 €
50 pcs.
0.8330 €
250 pcs.
0.7140 €
1000 pcs.
0.6307 €
*incl. VAT plus shipping costs
Subject to prior sale
Buzzers, type Digisound F/DG 111.
Without electronic system, sound transducer with construction similar to dynamic speakers, for PCB connection; Operating voltage: 1.0 to 2.0 V. Rated voltage 1.5 V. Frequency: 2.048 kHz. Operating temperatures: –20 to +60 °C (F/DG-111 GP –25 to +70 °C). Dimensions: D 12 x 8.5 mm. Weight: 2.0 g.
Technical attributes (type, sound pressure level/0.1 m, current consumption): F/DG-111 P, min. 80 dB, 10 mA
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Sound pressure level | 80 db | |
| Resonance frequency | 2048 Hz | |
| Version | signal transmitter | |
| Installation diameter | 12 mm | |
| Voltage | 1.5 VDC | |
| Rated current | 20 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318070 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
