F/CM12P | Digisound
Piezo signal transmitter, 85 dB, 12 VDC, 12 mA, black, F/CM12P
Order No.: 36M500
EAN: 4099891542078
MPN:
F/CM12P
Unit Price (€ / pc.)
2.8441 € *
Available: 1,819 pcs.
Next delivery: 1,100 pcs. on 2026-02-13
Total Price:
2.84 € *
Price list
Quantity
Price per unit*
1 pcs.
2.8441 €
25 pcs.
2.4157 €
100 pcs.
2.2372 €
250 pcs.
2.1301 €
1000 pcs.
1.9516 €
*incl. VAT plus shipping costs
Subject to prior sale

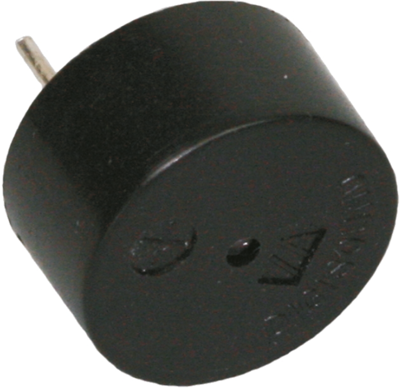

Piezo buzzers, type Digisound F/CM 12 P.

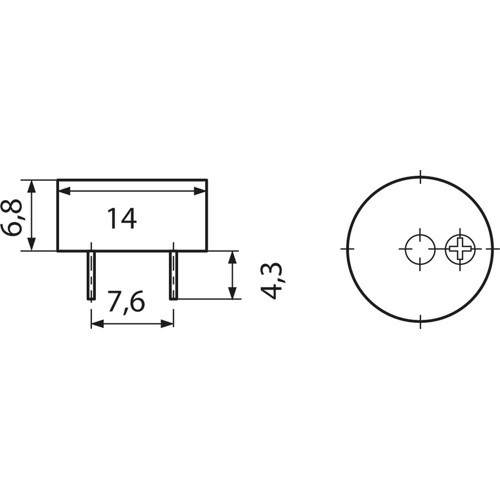

For PCB mounting, with molded oscillator circuit; Features: low current consumption, ultra-compact design, high sound pressure level and reliability. Operating voltage: 3.0 to 16 VDC. Rated voltage: 12 VDC. Current consumption: max. 12 mA. Frequency: 4.0 kHz (±0.5 kHz). Sound pressure level: 85 dB. Operating temperatures: –20 to +70 °C. Grid: 7.6 mm. Dimensions: D 13.8 x 7.5 mm. Weight: 0.8 g.
Type: F/CM 12 P, Piezo buzzer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Resonance frequency | 4000 Hz | |
| Version | piezo signal transmitter | |
| Sound pressure level | 85 db | |
| Rated current | 12 mA | |
| Voltage | 12 VDC |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85318070 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Substance description | Lead, Lead titanium zirconium oxide |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
