F/CM04P | Digisound
Piezo signal transmitter, 90 dB, 12 VDC, 15 mA, black, F/CM04P
Order No.: 36M505
EAN: 4099891542085
MPN:
F/CM04P
This item is no longer available.
As an alternative, we recommend the following item:
Piezo signal transmitter, 3.4 kHz, 90 dB, 12 VDC, 15 mA, black, F-B-P2312IPB-15
Order No.: 36M506
Manufacturer: Digisound
per pc. 3.8675 € *

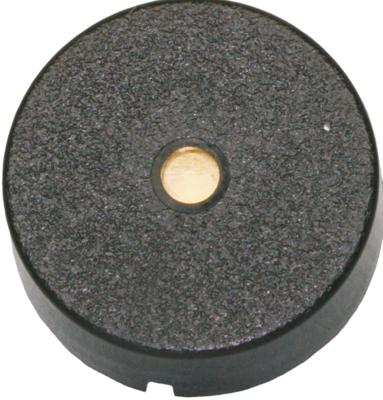

Piezo buzzers, type Digisound F/CM 04 P.

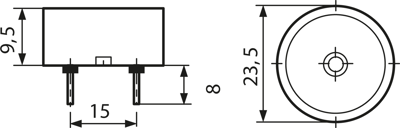

With electronic system and high sound pressure level. Low current consumption, for universal applications; Operating voltage: 3.0 to 15 VDC. Rated voltage: 12 VDC. Current consumption: max. 15 mA. Frequency: 3.3 kHz (±0.5 kHz). Sound pressure level: min. 90 dB/0.1m. Operating temperatures: –20 to +70 °C. Grid: 15 mm. Dimensions: D 23.5 x 9.5 mm. Weight: 3.0 g.
Type: F/CM 04 P, Piezo buzzer
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| Sound pressure level | 90 db | |
| Resonance frequency | 3300 Hz | |
| Version | piezo signal transmitter | |
| Voltage | 12 VDC | |
| Rated current | 15 mA |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318070 |
| Country of origin | JP |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead titanium zirconium oxide |
| Date of RoHS guidelines | 3/31/15 |
