B/SM28 AP WS | Digisound

Siren, 96 dB, 30 VDC, 28 mA, red, B/SM28 AP WS

Order No.: 32M8744
EAN: 4099891541354
MPN:
B/SM28 AP WS

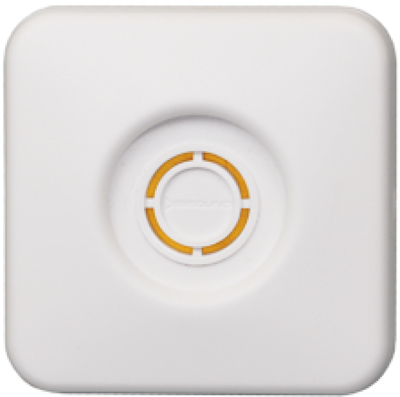

B/SM28 AP WS Digisound Acoustic Signal Transmitters Image 1
B/SM28 AP WS Digisound Acoustic Signal Transmitters Image 2
Image may differ
Unit Price (€ / pc.)
64.7836 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
64.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
64.7836 €

Sirens, type Digisound B/SM 28 UP/AP.

Flush or surface installation; Operating voltage range: 10 to 30 VDC. Current consumption: 30 mA. Number of sounds: 28 (2 sounds can be activated). Sound pressure level on 24 V: 96 to 113 dB (A)/1.0 m. Volume control: –20 dB. Degree of protection: IP 54. Housing color: white.

Type: B/SM 28 AP, siren, surface mount, white, RAL 9010

Technical specifications
Colour red
Rated current 28 mA
Sound pressure level 96 db
Version siren
Voltage 30 VDC
Logistics
Country of origin IN
Customs tariff number 85311030
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
