B/CS250 | Digisound

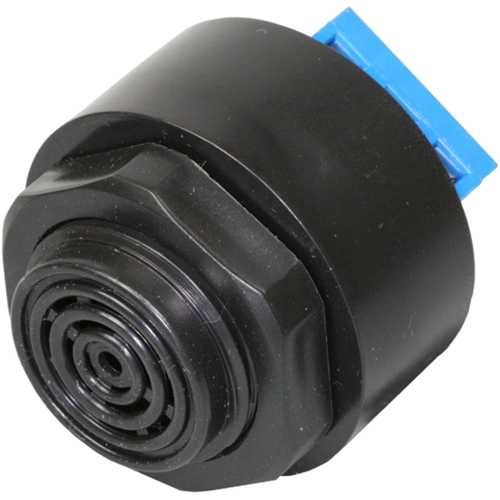

Piezo signal transmitter, 3.0 kHz, 87 dB, 220 V AC/DC, 6.5 mA, black, B/CS250
Order No.: 36M414
EAN: 4099891541866
MPN:
B/CS250
Piezo buzzers, type Digisound B/CS 250 und B/PS 250.

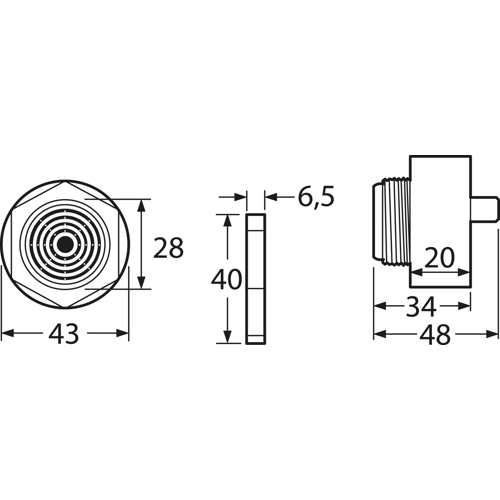

With electronic system, for screw terminal connection, suitable for operation on DC and AC voltage; Operating voltage: 110 to 220 V AC/DC. Rated voltage 220 V AC/DC. Current consumption: 6.0 mA. Frequency: 3.0 kHz ±0.5 kHz. Sound pressure level: 87 ±3.0 dB/1.0 m. Operating temperatures: –40 to +75 °C. Dimensions: D 43 x 34 mm. Single-hole mounting hole diameter 29 mm. Color: black. Weight: approx. 120 g.
Technical attributes (type, sound type): B/CS 250, with permanent sound
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | piezo signal transmitter | |
| Frequency | 3.0 kHz | |
| Sound pressure level | 87 db | |
| Voltage | 220 V AC/DC | |
| Rated current | 6.5 mA | |
| Installation diameter | 29 mm | |
| Colour | black | |
| Resonance frequency | 3000 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85318040 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
