B/CP28 GRAU | Digisound
Piezo signal transmitter, 2.9 kHz, 85 dB, 12 VDC, 20 mA, gray, B/CP28 GRAU
Order No.: 36M410
EAN: 4099891541842
MPN:
B/CP28 GRAU
Unit Price (€ / pc.)
18.6830 € *
Available: 54 pcs.
Next delivery: 104 pcs. on 2025-10-28
Total Price:
18.68 € *
Price list
Quantity
Price per unit*
1 pcs.
18.6830 €
10 pcs.
16.4458 €
50 pcs.
15.3153 €
150 pcs.
14.6370 €
500 pcs.
13.8992 €
*incl. VAT plus shipping costs
Subject to prior sale

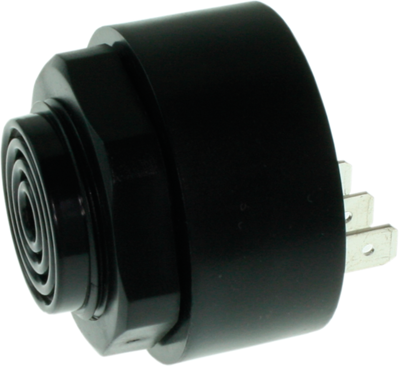

Piezo buzzers, type Digisound B/C 28 und B/CP 28.

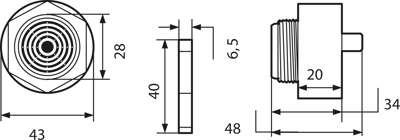

With electronic system, for connection with 6.3 mm tab terminals or soldering; Operating voltage: 5.0 to 28 VDC. Rated voltage: 12 VDC. Current consumption: max. 20 mA. Frequency: 2.9 kHz ±0.5. Operating temperatures: –20 to +75 °C. Dimensions: D 43 x 34 mm. Single-hole mounting hole diameter 29 mm. Weight: 40 g.
Technical attributes (type, sound pressure level/1.0 m, sound type, color): B/CP 28, 85 dB, permanent/intermittent sound, gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Resonance frequency | 2900 Hz | |
| Rated current | 20 mA | |
| Sound pressure level | 85 db | |
| Colour | gray | |
| Voltage | 12 VDC | |
| Installation diameter | 29 mm | |
| Frequency | 2.9 kHz | |
| Version | piezo signal transmitter |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318070 |
| Country of origin | CN |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead, Lead titanium zirconium oxide |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
