B/CP28-100DB SCHWARZ | Digisound

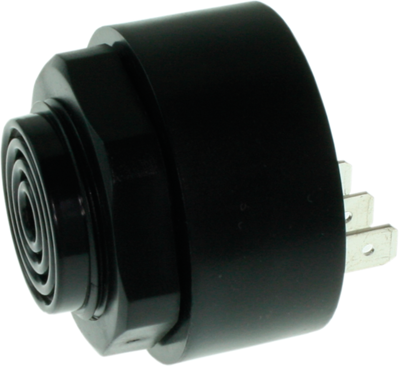

Piezo signal transmitter, 2.9 kHz, 95 dB, 12 VDC, 20 mA, black, B/CP28-100DB SCHWARZ
Order No.: 36M412
EAN: 4099891541859
MPN:
B/CP28-100DB SCHWARZ
Unit Price (€ / pc.)
20.2062 € *
Available: 11 pcs.
Next delivery: 500 pcs. on 2026-01-09
Total Price:
20.21 € *
Price list
Quantity
Price per unit*
1 pcs.
20.2062 €
10 pcs.
17.7786 €
50 pcs.
16.5648 €
150 pcs.
15.8389 €
500 pcs.
15.0416 €
*incl. VAT plus shipping costs
Subject to prior sale
Piezo buzzers, type Digisound B/C 28 und B/CP 28.

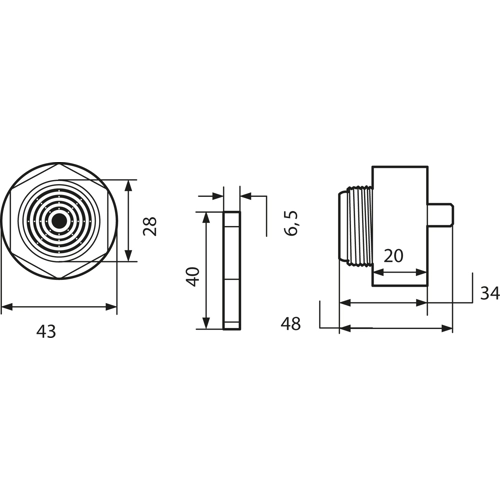

With electronic system, for connection with 6.3 mm tab terminals or soldering; Operating voltage: 5.0 to 28 VDC. Rated voltage: 12 VDC. Current consumption: max. 20 mA. Frequency: 2.9 kHz ±0.5. Operating temperatures: –20 to +75 °C. Dimensions: D 43 x 34 mm. Single-hole mounting hole diameter 29 mm. Weight: 40 g.
Technical attributes (type, sound pressure level/1.0 m, sound type, color): B/CP 28–100, 95 dB, permanent/intermittent sound, black
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | piezo signal transmitter | |
| Frequency | 2.9 kHz | |
| Resonance frequency | 2900 Hz | |
| Voltage | 12 VDC | |
| Installation diameter | 29 mm | |
| Colour | black | |
| Rated current | 20 mA | |
| Sound pressure level | 95 db |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CN |
| Customs tariff number | 85318070 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead, Lead titanium zirconium oxide |
| RoHS conform | Yes |
