ZPF000000000114204 | DEUTSCH

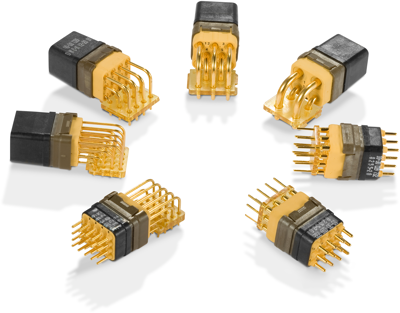

Socket header, 8 pole, pitch 4.62 mm, straight, black, ZPF000000000114204
Order No.: 37P4600
EAN: 4099889954937
MPN:
ZPF000000000114204
732-8260-16
Unit Price (€ / pc.)
43.4469 € *
Standard delivery time from the manufacturer is: 16 Weeks
Rectangular Contact Insert, ZPF000000000114204, TE Connectivity
Product Type: Module, Rectangular Connector Insert Type: Socket, Connector System: Wire-to-Board, Sealable: Yes, Connector & Contact Terminates To: Printed Circuit Board, Number of Positions: 8, Module Material: Composite, Contact Type: Socket, Contact Insert Pole Configuration: 8, Contact Current Rating (Max): 13 A, Connector Mounting Type: Board Mount, Centerline (Pitch): 4.62 mm, Operating Temperature Range: -55 – 175 °C, Circuit Application: Power, Signal & Data, Packaging Method: Package
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket header | |
| contact surface | gold-plated | |
| Pin number | 8 pole | |
| Rated voltage | 115 V | |
| Orientation | straight | |
| Contact type | socket | |
| Grid | 4.62 mm | |
| Number of rows | 3 | |
| Additional parts | equipped | |
| Connection | solder pin | |
| Rated current | 13 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
