ZPF000000000110280 | DEUTSCH

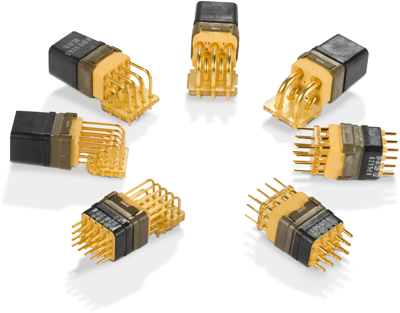

Pin header, 12 pole, pitch 3.38 mm, angled, black, ZPF000000000110280
Order No.: 37P4596
EAN: 4099889954890
MPN:
ZPF000000000110280
732-8255-20
Unit Price (€ / pc.)
42.5068 € *
Standard delivery time from the manufacturer is: 16 Weeks
Male connector, ZPF000000000110280, TE Connectivity
Product Type: Module, Rectangular Connector Insert Type: Pin, Connector System: Wire-to-Board, Sealable: Yes, Connector & Contact Terminates To: Printed Circuit Board, Number of Positions: 12, Module Material: Composite, Contact Type: Pin, Contact Insert Pole Configuration: 12, Contact Current Rating (Max): 7.5 A, Connector Mounting Type: Board Mount, Centerline (Pitch): 3.38 mm, Operating Temperature Range: -55 – 175 °C, Circuit Application: Power, Signal & Data, Packaging Method: Bag
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| contact surface | gold-plated | |
| Pin number | 12 pole | |
| Rated voltage | 115 V | |
| Orientation | angled | |
| Contact type | pin | |
| Grid | 3.38 mm | |
| Number of rows | 3 | |
| Additional parts | equipped | |
| Connection | solder pin | |
| Rated current | 7.5 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Lead |
| SVHC free | No |
