ZPF000000000015268 | DEUTSCH
Pin header, 12 pole, pitch 3.38 mm, straight, black, ZPF000000000015268
Order No.: 37P4577
EAN: 4099889954746
MPN:
ZPF000000000015268
DMC-M 12-20 PN
Unit Price (€ / pc.)
20.8012 € *
Available: 0 pcs.
Leadtime: 8 Weeks **

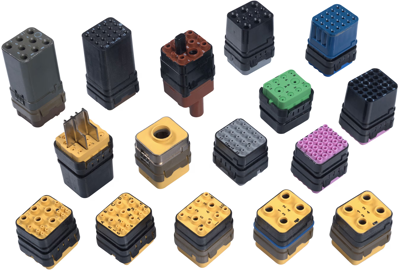

Male connector, ZPF000000000015268, TE Connectivity
Product Type: Module, Rectangular Connector Insert Type: Pin, Connector System: Wire-to-Wire, Sealable: Yes, Connector & Contact Terminates To: Wire & Cable, Number of Positions: 12, Module Material: Composite, Contact Type: Pin, Contact Insert Pole Configuration: 12, Contact Current Rating (Max): 7.5 A, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Centerline (Pitch): 3.38 mm, Wire Size: 24 – 20 AWG, Wire Size: 0.25 -0.5 mm², Operating Temperature Range: -55 – 175 °C, Circuit Application: Power, Signal & Data, Packaging Method: Package
Technical specifications
| Connection | crimp connection | |
| Number of rows | 3 | |
| Version | pin header | |
| Additional parts | unequipped | |
| Colour | black | |
| Contact type | pin | |
| contact surface | gold-plated | |
| Rated voltage | 125 V | |
| Rated current | 7.5 A | |
| Orientation | straight | |
| Pin number | 12 pole | |
| Grid | 3.38 mm |
Download
Logistics
| Country of origin | IN |
| Customs tariff number | 85369001 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | Lead |
