ZPF000000000015160 | DEUTSCH
Socket housing, 1 pole, pitch 25.4 mm, straight, black, ZPF000000000015160
Order No.: 37P4563
EAN: 4099889954623
MPN:
ZPF000000000015160
DMC-M 01-08 BN
Unit Price (€ / pc.)
20.4204 € *
Standard delivery time from the manufacturer is: 16 Weeks

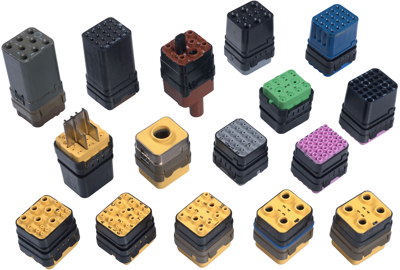

Rectangular Contact Insert, ZPF000000000015160, TE Connectivity
Product Type: Module, Rectangular Connector Insert Type: Socket, Connector System: Wire-to-Wire, Sealable: Yes, Connector & Contact Terminates To: Wire & Cable, Number of Positions: 1, Module Material: Composite, Contact Type: Socket, Contact Insert Pole Configuration: 1, Termination Method to Wire & Cable: Crimp, Connector Mounting Type: Cable Mount (Free-Hanging), Wire Size: 10 – 8 AWG, Wire Size: 6 – 10 mm², Operating Temperature Range: -55 – 175 °C, Circuit Application: Power, Signal & Data, Packaging Method: Package
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket housing | |
| Pin number | 1 pole | |
| Rated voltage | 125 V | |
| Orientation | straight | |
| Contact type | socket | |
| Grid | 25.4 mm | |
| Number of rows | 1 | |
| Additional parts | unequipped | |
| Connection | crimp connection | |
| Rated current | 46 A | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389091 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
