ZPF000000000015137 | DEUTSCH

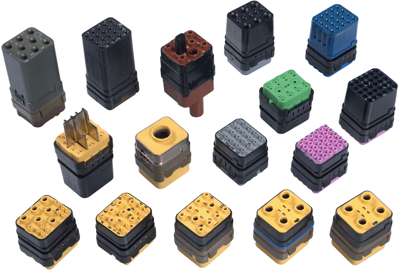

Connector kit, 1 pole, pitch 25.4 mm, straight, black, ZPF000000000015137
Order No.: 37P4559
EAN: 4099889954586
MPN:
ZPF000000000015137
DMC-M 00-00 AN
Unit Price (€ / pc.)
21.5866 € *
Standard delivery time from the manufacturer is: 13 Weeks
Rectangular Contact Insert, ZPF000000000015137, TE Connectivity
Product Type: Module, Rectangular Connector Insert Type: Dummy, Sealable: Yes, Module Material: Composite, Operating Temperature Range: -55 – 175 °C, Packaging Method: Package
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Colour | black | |
| contact surface | gold-plated | |
| Grid | 25.4 mm | |
| Pin number | 1 pole | |
| Version | connector kit | |
| Additional parts | unequipped | |
| Orientation | straight | |
| Connection | crimp connection | |
| Contact type | pin | |
| Rated voltage | 125 V | |
| Number of rows | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | IN |
| Customs tariff number | 85389091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
