DTM13-12PC | DEUTSCH

Connector, 12 pole, pitch 4.19 mm, angled, gray, DTM13-12PC

Order No.: 72P2686
EAN: 4099891741020
MPN:
DTM13-12PC
Series: DTM

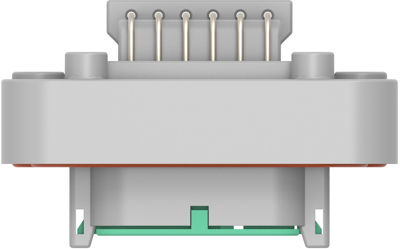

DTM13-12PC DEUTSCH PCB Connection Systems Image 1

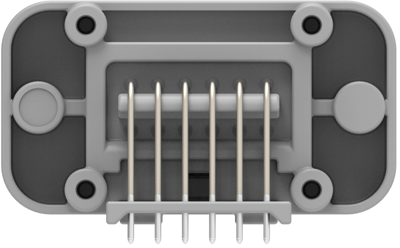

DTM13-12PC DEUTSCH PCB Connection Systems Image 2

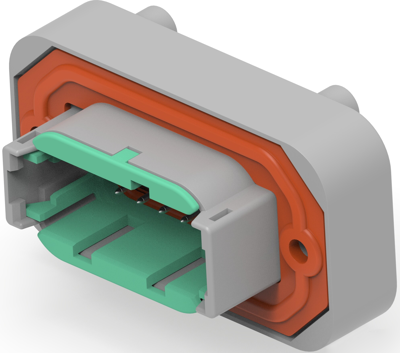

DTM13-12PC DEUTSCH PCB Connection Systems Image 3

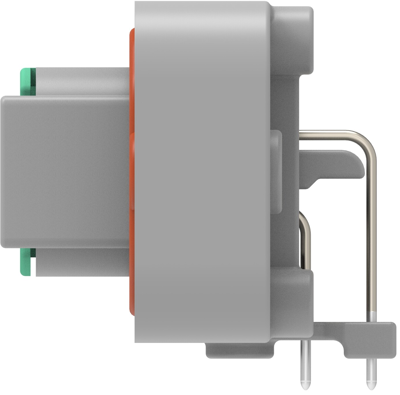

DTM13-12PC DEUTSCH PCB Connection Systems Image 4

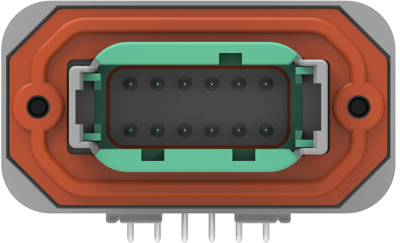

DTM13-12PC DEUTSCH PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
27.8222 € *
Available in 5 Days: 242 pcs. - if ordered today
Total Price:
27.82 € *
Price list
Quantity
Price per unit*
1 pcs.
27.8222 €
10 pcs.
25.5850 €
25 pcs.
23.0265 €
50 pcs.
20.7298 €
*incl. VAT plus shipping costs
Subject to prior sale

Sealed connector, DTM13-12PC, DEUTSCH

The DTM13-12PC is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers solutions to your smaller wire gauge applications. This product line was developed to fill the need for lower amperage, multipin connector.

Features

  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedge locks confirm contact alignment and retention
Technical specifications
Colour gray
Type of locking Yes
contact surface tin-plated
Rated current 7.5 A
Grid 4.19 mm
Pin number 12 pole
Version connector
Additional parts equipped
Orientation angled
Connection solder connection
Contact type pin
Rated voltage 250 V
Number of rows 2
Logistics
Country of origin US
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
SVHC free No
RoHS conform Yes
