DTM13-12PA-R005 | DEUTSCH

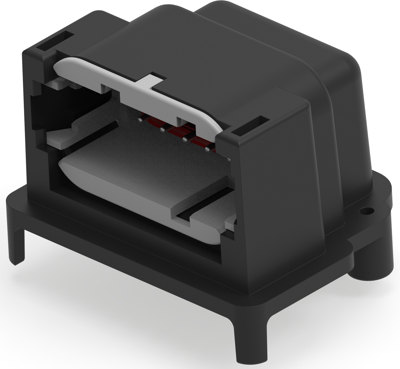

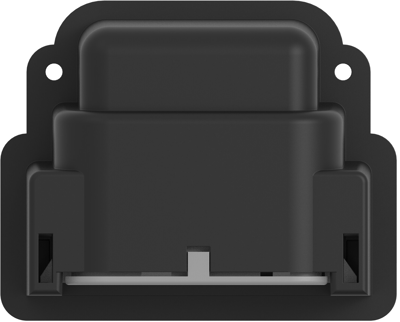

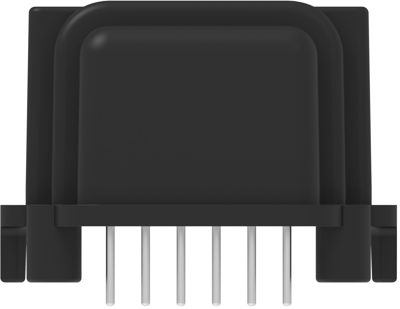

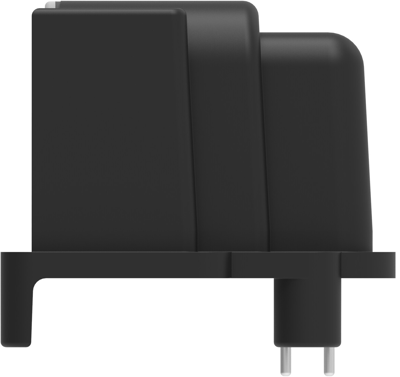

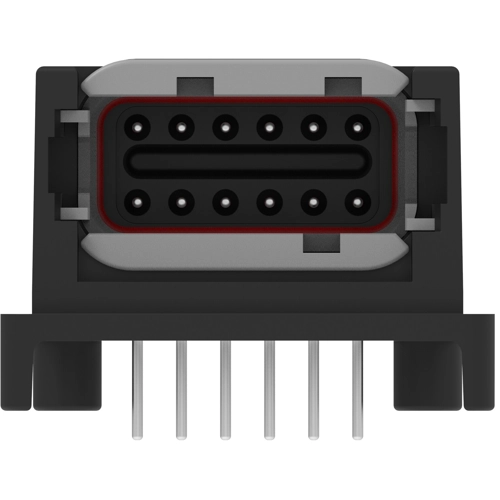

Connector, 12 pole, pitch 4.19 mm, angled, black, DTM13-12PA-R005
Unit Price (€ / pc.)
54.2878 € *
Available in 5 Days: 147 pcs. - if ordered today
Total Price:
217.15 € *
Price list
Quantity
Price per unit*
4 pcs.
54.2878 €
25 pcs.
45.0415 €
*incl. VAT plus shipping costs
Subject to prior sale
Sealed connector, DTM13-12PA-R005, DEUTSCH
The DTM13-12PA-R005 is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers solutions to your smaller wire gauge applications. This product line was developed to fill the need for lower amperage, multipin connector.
Features
- Rectangular, thermoplastic housing
- Integrated latch for mating
- Wedge locks confirm contact alignment and retention
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | connector | |
| Contact type | pin | |
| Pin number | 12 pole | |
| Grid | 4.19 mm | |
| Connection | solder connection | |
| Orientation | angled | |
| Type of locking | Yes | |
| contact surface | nickel-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 7.5 A | |
| Additional parts | equipped | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Substance description | Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane, Lead |
| SVHC free | No |
