DT15-12PC-G003 | DEUTSCH

Connector, 12 pole, pitch 1.45 mm, straight, green, DT15-12PC-G003

Order No.: 72P2656
EAN: 4099891741006
MPN:
DT15-12PC-G003
Series: DT

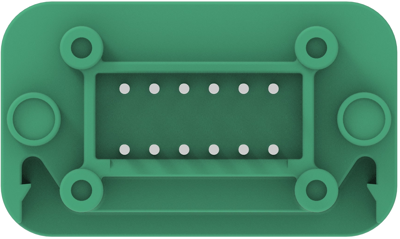

DT15-12PC-G003 DEUTSCH PCB Connection Systems Image 1

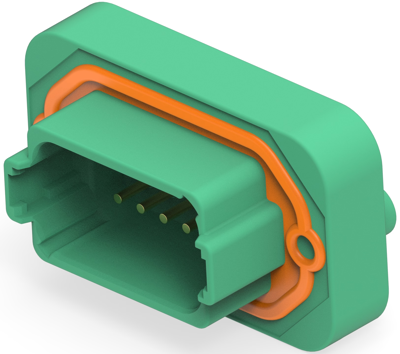

DT15-12PC-G003 DEUTSCH PCB Connection Systems Image 2

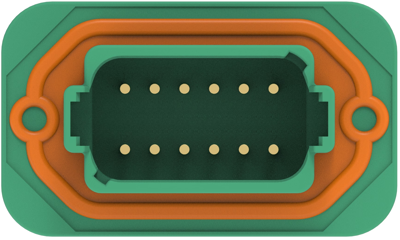

DT15-12PC-G003 DEUTSCH PCB Connection Systems Image 3

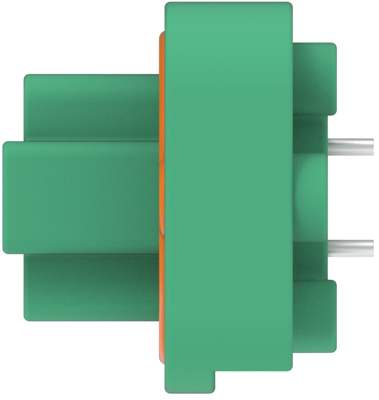

DT15-12PC-G003 DEUTSCH PCB Connection Systems Image 4

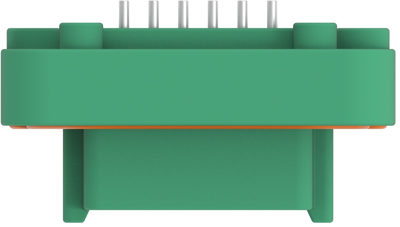

DT15-12PC-G003 DEUTSCH PCB Connection Systems Image 5
Image may differ
Unit Price (€ / pc.)
63.5936 € *
Available in 5 Days: 105 pcs. - if ordered today
Total Price:
63.59 € *
Price list
Quantity
Price per unit*
1 pcs.
63.5936 €
10 pcs.
58.5004 €
25 pcs.
52.6456 €
50 pcs.
47.3977 €
*incl. VAT plus shipping costs
Subject to prior sale

Sealed connector, DT15-12PC-G003, DEUTSCH

The DT15-12PC-G003 is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers field proven reliability and rugged quality, also includes optional flange mounting, multi-pin arrangements, and design flexibility.

Features

  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedge locks confirm contact alignment and retention
Technical specifications
Colour green
Type of locking Yes
contact surface gold-plated
Rated current 13 A
Grid 1.45 mm
Connection plating tin-plated
Pin number 12 pole
Version connector
Additional parts equipped
Orientation straight
Connection solder connection
Contact type pin
Rated voltage 250 V
Number of rows 2
Logistics
Country of origin US
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
SVHC free No
RoHS conform Yes
