DT13-48PABCD-R015 | DEUTSCH

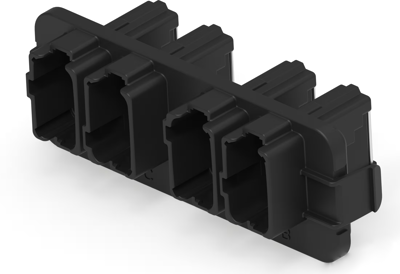

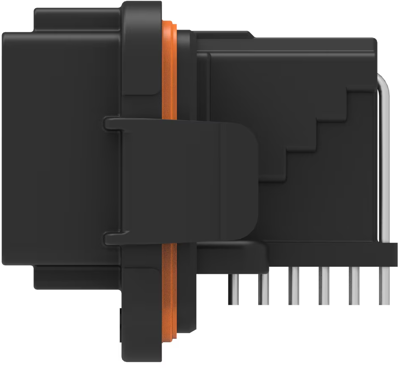

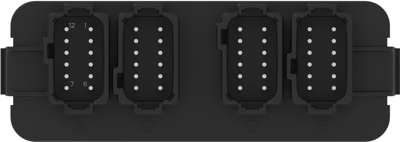

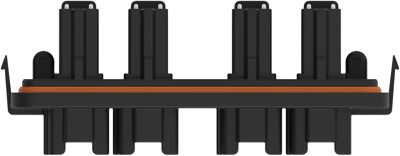

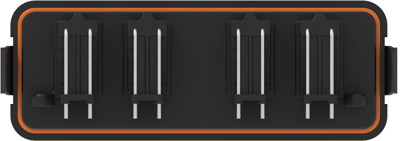

Pin header, 48 pole, pitch 1.45 mm, angled, black, DT13-48PABCD-R015
Order No.: 59F585
MPN:
DT13-48PABCD-R015
Unit Price (€ / pc.)
128.4248 € *
Available in 5 Days: 13 pcs. - if ordered today
Total Price:
128.42 € *
Price list
Quantity
Price per unit*
1 pcs.
128.4248 €
2 pcs.
122.4986 €
5 pcs.
117.0960 €
10 pcs.
109.0754 €
*incl. VAT plus shipping costs
Subject to prior sale
PCB connector, DT13-48PABCD-R015, DEUTSCH
PCB mount header, Right angle, Wire-to-Board, 48 Positions, 1.45 mm centerline, Fully Shrouded, Nickel (Ni).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin header | |
| Contact type | pin | |
| Pin number | 48 pole | |
| Grid | 1.45 mm | |
| Connection | solder connection | |
| Orientation | angled | |
| Type of locking | Yes | |
| contact surface | nickel-plated | |
| Connection plating | tin-plated | |
| Rated voltage | 250 V | |
| Rated current | 13 A | |
| Number of rows | 2 | |
| Colour | black |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | US |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
