ZPF000000000019065 | DEUTSCH

Socket, 55 pole, solder cup, bayonet locking, straight, ZPF000000000019065

Order No.: 37P4789
EAN: 4099889717556
MPN:
ZPF000000000019065
FDBA 54H 22-55 PN-K
ZPF000000000019065 DEUTSCH Other Circular Connectors

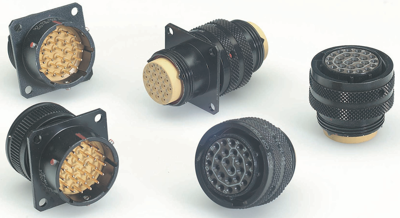

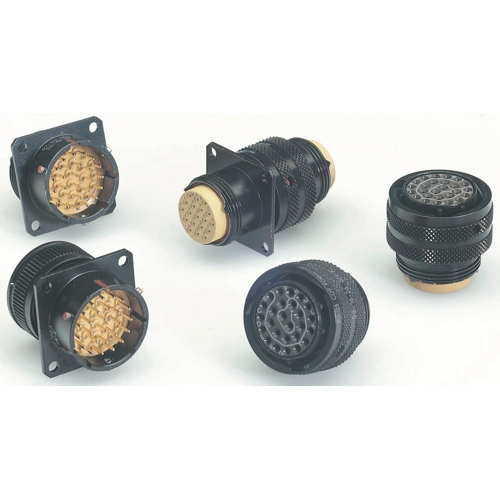

Image may differ
Unit Price (€ / pc.)
471.8112 € *
Standard delivery time from the manufacturer is: 23 Weeks
Total Price:
11,795.28 € *
*incl. VAT plus shipping costs
Subject to prior sale
25 pcs.
471.8112 €

Circular connector, ZPF000000000019065, Deutsch

Product Type: Connector, Connector System: Wire-to-Panel, Sealable: Yes, Connector & Contact Terminates To: Wire & Cable, Circular Connector Type: Receptacle, Keying: Insert Polarization N, Number of Positions: 55, Number of Power Positions: 0, Number of Signal Positions: 55, Contacts Preloaded: No, Operating Voltage: 115 VDC, Environmental Protection Type: Elastomer Sealed, Shell Plating Material: Black Anodized, Shell Base Material: Aluminum, Circular Connector Insulation Material Type: Thermoset, Hermetically Sealed: No, Contact Current Rating (Max): 7.5 A, Reverse Gender: No, Contact Layout Arrangement: 22 – 55, Circular Connector Contact Type: Solder Cup Pin, Termination Method to Wire & Cable: Solder, Panel Mount Feature Type: Jam Nut, Connector Mounting Type: Panel Mount, Circular Connector Shell Size: 22, Wire Size: 0.2 -0.52 mm², Wire Size: 20 – 24 AWG, Operating Temperature Range: -65 – 200 °C, Durability Rating: 500 Cycles, Circuit Application: Power, Signal & Data, Shielded: No

Technical specifications
Filter Property Value
Pin number 55 pole
Shell Material aluminum
Cable cross-section 0.2-0.52 mm²
Version socket
Assembly PCB mounting
Additional parts equipped
Orientation straight
Type of locking bayonet locking
Contact connection solder cup
Logistics
Property Value
Customs tariff number 85366990
Country of origin MX
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
