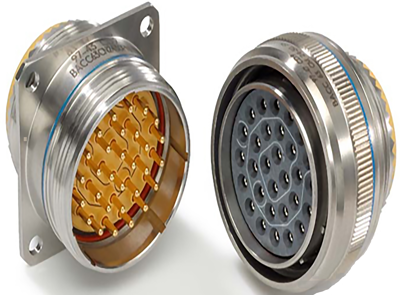

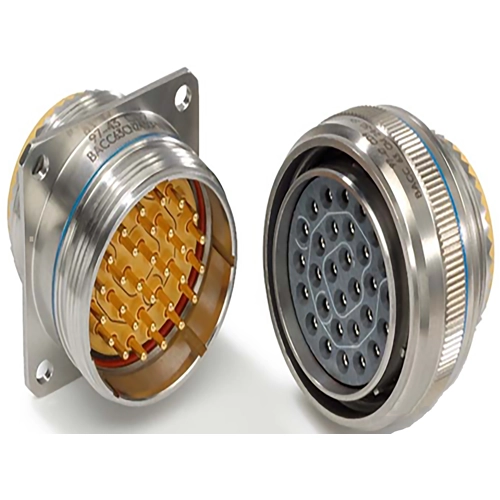

Circular connector, ZPF000000000008632, Deutsch
Assembly Type: Electrical Connector, Connector System: Wire-to-Device, Sealable: Yes, Connector & Contact Terminates To: Wire & Cable, Circular Connector Type: Circular connector, Factory Installed Backshell: Without, Number of Positions: 24, Number of Power Positions: 0, Number of Signal Positions: 24, Contacts Preloaded: No, Shell Plating Material: Passivated Stainless Steel Firewall, Shell Base Material: Stainless Steel, Circular Connector Insulation Material Type: Thermoset, Hermetically Sealed: No, Contact Current Rating (Max): 7.5 A, Reverse Gender: No, Contact Layout Arrangement: 16 – 24, Circular Connector Contact Type: Circular connector, Termination Method to Wire & Cable: Crimp, Mating Retention Type: Threaded, Mating Alignment Type: Keyed, Mating Retention: With, Circular Connector Shell Size: 16, Alignment Keyed: Clocking, Wire Size: 0.2 -0.52 mm², Wire Size: 20 – 24 AWG, Operating Temperature Range: -65 – 200 °C, Durability Rating: 500 Cycles, Circuit Application: Power, Signal & Data, Shielded: Yes, Approved Standards: BACC63,EN2997,ESC10
