ZPF000000000008033 | DEUTSCH
Plug, 5 pole, solder cup, straight, ZPF000000000008033
Order No.: 37P4799
EAN: 4099889717570
MPN:
ZPF000000000008033
983-1YE 10-05 PN
Unit Price (€ / pc.)
82.4313 € *
Standard delivery time from the manufacturer is: 19 Weeks

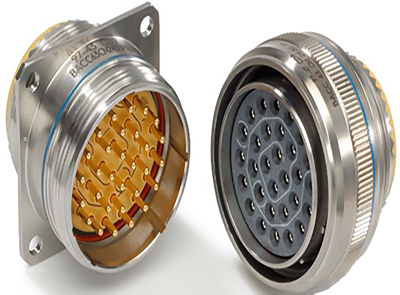

Circular connector, ZPF000000000008033, Deutsch
The ZPF000000000008033 is a standard circular connector that is used in it's stainless steel for harsh constraint-facing areas such as engines, landing gears, APU (Auxiliary Power Unit), wings, pylons, leading edges. This product is especially designed for harsh environment aircraft zone applications such as engines and boosters.
Features
- Self-locking system
- Fireproof inserts
- Fluid resistant inserts
- Glass-to-metal sealing
- Straight cable clamp
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | solder cup | |
| Shell Material | stainless steel | |
| Orientation | straight | |
| Assembly | PCB mounting | |
| Version | plug | |
| Pin number | 5 pole | |
| Cable cross-section | 0.2-0.52 mm² |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
