YDTS26F15-19SNV001 | DEUTSCH
Circular connector, 19 pole, crimp connection, straight, YDTS26F15-19SNV001
Unit Price (€ / pc.)
360.6295 € *
Available in 5 Days: 150 pcs. - if ordered today
Total Price:
360.63 € *
Price list
Quantity
Price per unit*
1 pcs.
360.6295 €
2 pcs.
354.4177 €
*incl. VAT plus shipping costs
Subject to prior sale

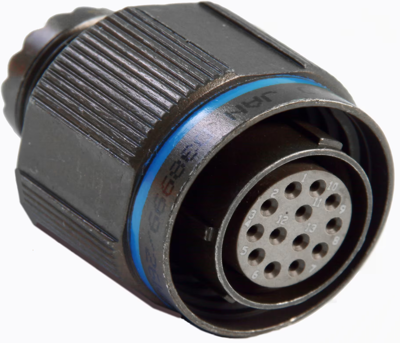

Circular connector, YDTS26F15-19SNV001, DEUTSCH
The YDTS26F15-19SNV001 is a subminiature circular connector, that offers a scoop-proof design for easy, reliable mating and a threaded coupling for excellent vibration resistance. This product is suitable for firewall and high-temperature applications such as engines. Contact retention system provides excellent contact retention under severe vibration.
Features
- High-quality silicone seals to help maximize tear resistance and sealing memory
- Self-locking threaded coupling
- Metal-to-metal bottoming for maximum EMI grounding protection
- Grounding fingers providing excellent EMI protection
- Trapezoidal thread for excellent shell-to-shell continuity
- Wide range of backshells and accessories
Technical specifications
| Assembly | panel mounting | |
| Contact connection | crimp connection | |
| Pin number | 19 pole | |
| Version | plug | |
| Shell Material | aluminum | |
| Orientation | straight |
Download
Logistics
| Country of origin | GB |
| Customs tariff number | 85366990 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
