YACT26JE35JBV00100 | DEUTSCH

Socket, 55 pole, crimp connection, straight, YACT26JE35JBV00100

Order No.: 37P3888
EAN: 4099889715736
MPN:
YACT26JE35JBV00100

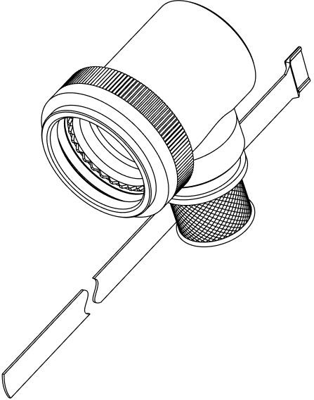

YACT26JE35JBV00100 DEUTSCH Other Circular Connectors Image 1

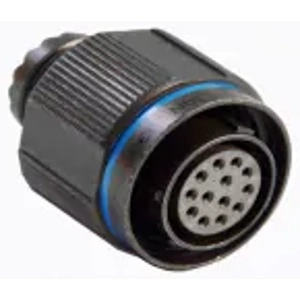

YACT26JE35JBV00100 DEUTSCH Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
843.3649 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
843.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
843.3649 €

Circular connector, YACT26JE35JBV00100, Deutsch

Assembly Type: Electrical Connector, Connector System: Cable-to-Panel, Sealable: Yes, Connector & Contact Terminates To: Wire & Cable, Circular Connector Type: Circular connector, Factory Installed Backshell: No, Number of Positions: 55, Number of Power Positions: 0, Number of Signal Positions: 55, Contacts Preloaded: No, Voltage: 1300 Vrms, Feedthrough Type: No, Shell Plating Material: Cadmium, O.D., Shell Base Material: Composite, Circular Connector Insulation Material Type: Hard Dielectric/Silicone, Hermetically Sealed: No, Contact Current Rating (Max): 5 A, Reverse Gender: No, Contact Layout Arrangement: E35, Circular Connector Contact Type: Circular connector, Panel Mount Feature: Without, Connector Mounting Type: Panel Mount, Polarization Code: B, Mating Alignment Type: Keyed, Mating Retention: With, Circular Connector Shell Size: 17, Alignment Keyed: Clocking, Assembly Length: 31.5 mm, Wire Size: 0.08 -0.33 mm², Wire Size: 28 – 22 AWG, Fluid Resistance: Yes, Operating Temperature Range: -65 – 200 °C, Durability Rating: 1500 Cycles, Circuit Application: Signal, Shielded: Yes, Packaging Quantity: 1, Position Locations Omitted: All

Technical specifications
Filter Property Value
Pin number 55 pole
Cable cross-section 0.08-0.33 mm²
Version socket
Assembly PCB mounting
Additional parts equipped
Orientation straight
Contact connection crimp connection
Logistics
Property Value
Customs tariff number 85366990
Country of origin TW
Compliance
Property Value
RoHS conform Yes
Substance description Cadmium, lead
SVHC free No
Date of RoHS guidelines 3/31/15
