DTS26W23-21PN | DEUTSCH

Plug, 21 pole, crimp connection, straight, DTS26W23-21PN

Order No.: 37P4144
EAN: 4099889715835
MPN:
DTS26W23-21PN

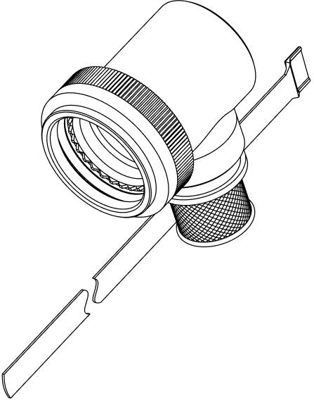

DTS26W23-21PN DEUTSCH Other Circular Connectors Image 1
DTS26W23-21PN DEUTSCH Other Circular Connectors Image 2
Image may differ
Unit Price (€ / pc.)
426.9244 € *
Standard delivery time from the manufacturer is: 26 Weeks
Total Price:
25,188.54 € *
*incl. VAT plus shipping costs
Subject to prior sale
59 pcs.
426.9244 €

Circular connector, DTS26W23-21PN, Deutsch

Product Type: Connector, Connector System: Cable-to-Panel, Sealable: Yes, Connector & Contact Terminates To: Wire & Cable, Circular Connector Type: Circular connector, Number of Positions: 21, Number of Power Positions: 21, Number of Signal Positions: 0, Contacts Preloaded: No, Shell Plating Material: Cadmium, O.D., Shell Base Material: Aluminum 6061-T6, Circular Connector Insulation Material Type: Hard Dielectric/Silicone, Hermetically Sealed: No, Contact Current Rating (Max): 13 A, Reverse Gender: No, Contact Layout Arrangement: 23 – 21, Circular Connector Contact Type: Pin, Connector Mounting Type: Panel Mount, Polarization Code: N, Mating Alignment Type: Keyed, Mating Retention: With, Circular Connector Shell Size: 23, Alignment Keyed: Clocking, Wire Size: 0.52 – 1.31 mm², Wire Size: 20 – 16 AWG, Operating Temperature Range: -65 – 200 °C, Circuit Application: Power, Shielded: Yes

Technical specifications
Filter Property Value
Pin number 21 pole
Shell Material aluminum alloy
Cable cross-section 0.52-1.31 mm²
Version plug
Assembly PCB mounting
Additional parts equipped
Orientation straight
Contact connection crimp connection
Logistics
Property Value
Customs tariff number 85366990
Country of origin MX
Compliance
Property Value
RoHS conform Yes
Substance description Cadmium, lead
SVHC free No
Date of RoHS guidelines 3/31/15
