ZPF000000000001979 | DEUTSCH
Receptacle, 0.34 mm², AWG 22, crimp connection, ZPF000000000001979
Order No.: 37P4967
EAN: 4099889649123
MPN:
ZPF000000000001979
182-0447-20
Unit Price (€ / pc.)
1.3328 € *
Standard delivery time from the manufacturer is: 23 Weeks

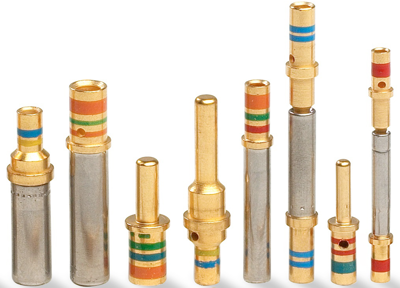

Socket contact, ZPF000000000001979, Deutsch
Barrel Type: Crimp, Connector System: Cable-to-Cable, Sealable: Yes, Connector & Contact Terminates To: Wire & Cable, Compatible With Wire & Cable Type: Discrete Wire, Operating Voltage: 115 VAC, Operating Voltage: 115 VDC, Contact Type: Socket, Contact Mating Area Plating Material: Gold, Wire Contact Termination Area Plating Material: Gold, Contact Retention Within Housing: With, Contact Size: Size 20, Termination Method to Wire & Cable: Crimp, Contact Retention Type Within Housing: Spring, Wire Size: 22 AWG, Wire Size: 0.34 mm², Operating Temperature Range: -65 – 200 °C.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | receptacle | |
| Contact surface mating area | gold-plated | |
| Cable cross-section | 0.34 mm² | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| Contact surface Connection range | gold-plated | |
| AWG cross-section | AWG 22 |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | TW |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
