1062-16-0122 | DEUTSCH
Receptacle, 0.75-2.0 mm², AWG 18-14, crimp connection, nickel-plated, 1062-16-0122
Order No.: 36P0015
EAN: 4099889641561
MPN:
1062-16-0122
Unit Price (€ / pc.)
0.2463 € *
Available in 5 Days: 8,000 pcs. - if ordered today
Total Price:
985.32 € *
Price list
Quantity
Price per unit*
4000 pcs.
0.2463 €
16000 pcs.
0.2118 €
*incl. VAT plus shipping costs
Subject to prior sale

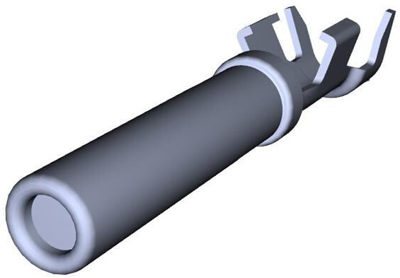

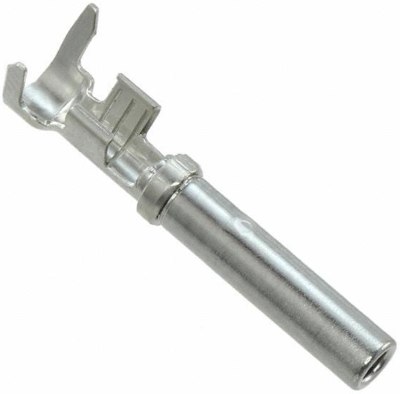

Crimp contact, 1062-16-0122, Deutsch
Automotive Terminal, Socket, Pin Diameter 1.59 mm, 18 - 14 AWG Wire Size, 0.75 - 2 mm² Wire Size.
Technical Data
- Sealable: No
- Wire Type: Copper
- Crimp type: F-crimp
- Interface plating: Nickel (Ni)
- Contact termination area plating material: Nickel (Ni)
Technical specifications
| Contact connection | crimp connection | |
| Cable cross-section | 0.75-2.0 mm² | |
| AWG cross-section | AWG 18-14 | |
| contact surface | nickel-plated | |
| Contact material | copper alloy | |
| Contact surface Connection range | nickel-plated | |
| Insulation diameter | 1.9-3.55 mm | |
| Version | receptacle |
Download
Logistics
| Customs tariff number | 85366990 |
| Original Packaging | Reel with 4,000 pieces |
| Country of origin | US |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
