0462-201-20141 | DEUTSCH

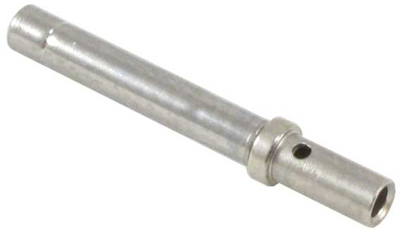

Receptacle, 0.5 mm², AWG 20, crimp connection, nickel-plated, 0462-201-20141
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
1.4161 € *
Available: 16 pcs.
Crimp contact, 0462-201-20141, Deutsch
Automotive Terminal, Socket, Pin Diameter 1.02 mm, 20 AWG Wire Size, 0.5 mm² Wire Size, Locking On the Terminal.
Technical Data
- Sealable: No
- Wire Type: Copper
- Crimp type: O-crimp
- Interface plating: Nickel (Ni)
- Contact termination area plating material: Nickel (Ni)
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | receptacle | |
| Cable cross-section | 0.5 mm² | |
| AWG cross-section | AWG 20 | |
| Contact connection | crimp connection | |
| Contact material | copper alloy | |
| contact surface | nickel-plated | |
| Contact surface Connection range | nickel-plated | |
| Insulation diameter | 1.91 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | CH |
| Customs tariff number | 85369010 |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Substance description | Lead |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
