HDP24-24-23PT-L015 | DEUTSCH

Socket, 23 pole, straight, black, HDP24-24-23PT-L015

Order No.: 72P2895
EAN: 4099889561036
MPN:
HDP24-24-23PT-L015
Series: HDP

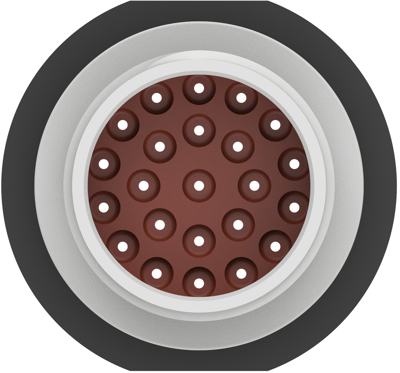

HDP24-24-23PT-L015 DEUTSCH Automotive Power Connectors Image 1

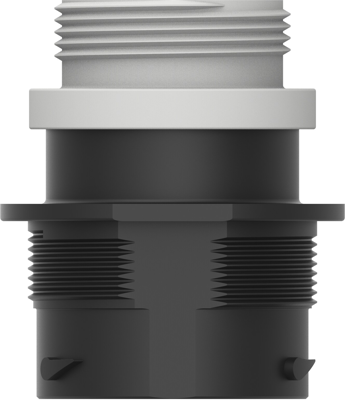

HDP24-24-23PT-L015 DEUTSCH Automotive Power Connectors Image 2

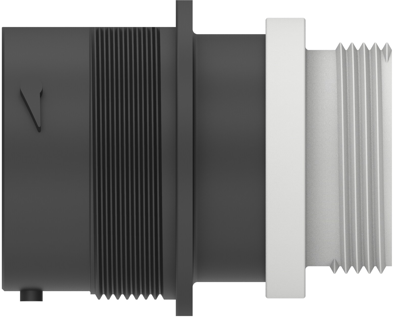

HDP24-24-23PT-L015 DEUTSCH Automotive Power Connectors Image 3

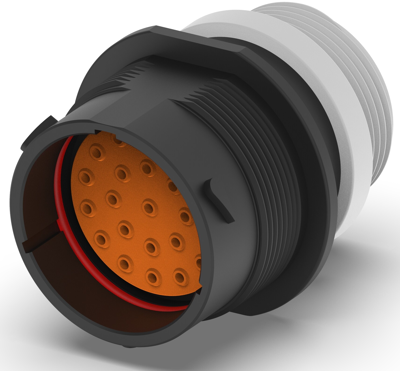

HDP24-24-23PT-L015 DEUTSCH Automotive Power Connectors Image 4

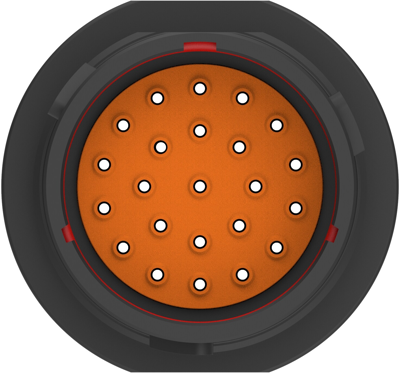

HDP24-24-23PT-L015 DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
35.6167 € *
Available in 5 Days: 74 pcs. - if ordered today
Total Price:
213.70 € *
Price list
Quantity
Price per unit*
6 pcs.
35.6167 €
25 pcs.
29.6905 €
*incl. VAT plus shipping costs
Subject to prior sale

Sealed connector, HDP24-24-23PT-L015, DEUTSCH

The HDP24-24-23PT-L015 is a heavy duty, environmentally sealed, multi-pin circular connector and is designed specifically for the truck, bus, and off-highway industry. This thermoplastic shell is suited for applications where chemicals can damage a connector housing.

Features

  • Circular, aluminum housing
  • Quick connect-disconnect bayonet coupling
  • Single hole bulkhead mounting
  • Rear insertion/rear removal contact system
Technical specifications
Colour black
Type of locking Yes
Rated current 13 A
Pin number 23 pole
Version straight
Connection crimp connection
Contact type socket
Rated voltage 250 V
Logistics
Country of origin US
Customs tariff number 85367000
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
