HD36-24-35SN-059 | DEUTSCH

Socket, 35 pole, straight, natural, HD36-24-35SN-059

Order No.: 72P2881
EAN: 4099889555516
MPN:
HD36-24-35SN-059
Series: HD30

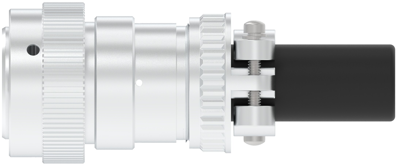

HD36-24-35SN-059 DEUTSCH Automotive Power Connectors Image 1

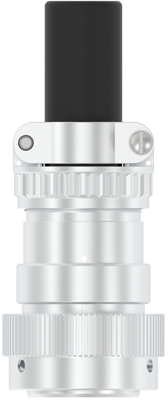

HD36-24-35SN-059 DEUTSCH Automotive Power Connectors Image 2

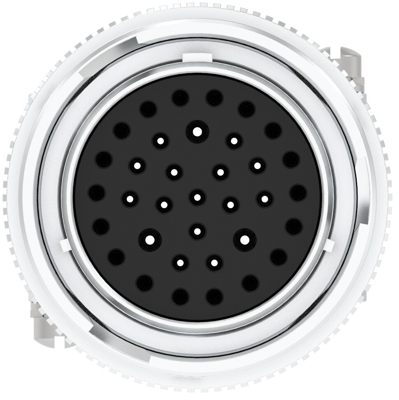

HD36-24-35SN-059 DEUTSCH Automotive Power Connectors Image 3

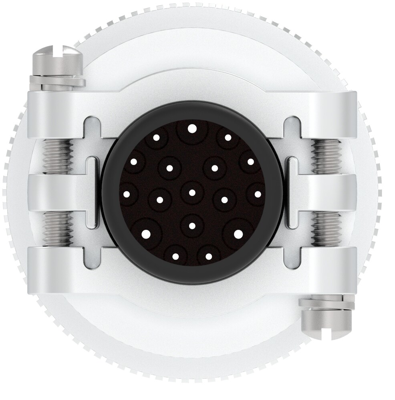

HD36-24-35SN-059 DEUTSCH Automotive Power Connectors Image 4

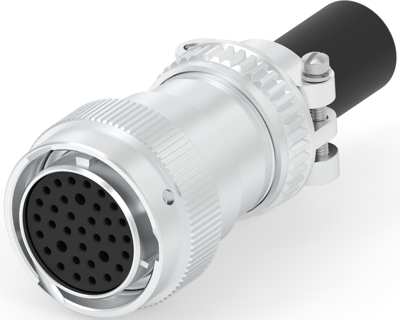

HD36-24-35SN-059 DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
76.1600 € *
Available in 5 Days: 54 pcs. - if ordered today
Total Price:
76.16 € *
Price list
Quantity
Price per unit*
1 pcs.
76.1600 €
2 pcs.
71.2453 €
5 pcs.
66.9256 €
10 pcs.
62.2132 €
*incl. VAT plus shipping costs
Subject to prior sale

Sealed connector, HD36-24-35SN-059, DEUTSCH

The HD36-24-35SN-059 is a heavy duty, environmentally sealed, multi-pin circular connector and is designed specifically for the truck, bus, and off-highway industry. This product is constructed from a metal shell developed to meet the needs of the heavy duty equipment and transportation industries.

Features

  • Circular, aluminum housing
  • Quick connect-disconnect bayonet coupling
  • Single hole bulkhead mounting
  • Rear insertion/rear removal contact system
Technical specifications
Filter Property Value
Type of locking Yes
Contact type socket
Version straight
Colour natural
Rated voltage 250 V
Pin number 35 pole
Logistics
Property Value
Country of origin MX
Customs tariff number 85389099
Compliance
Property Value
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Octamethylcyclotetrasiloxane
