HD36-24-33PN-L005 | DEUTSCH

Socket, 33 pole, straight, natural, HD36-24-33PN-L005

Order No.: 72P2879
EAN: 4099889555295
MPN:
HD36-24-33PN-L005
Series: HD30

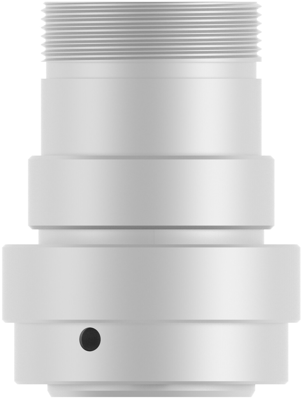

HD36-24-33PN-L005 DEUTSCH Automotive Power Connectors Image 1

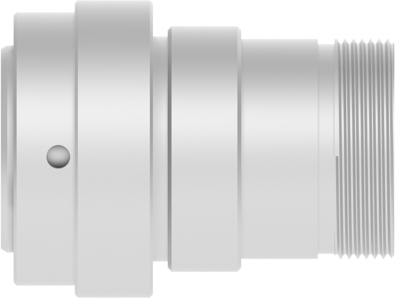

HD36-24-33PN-L005 DEUTSCH Automotive Power Connectors Image 2

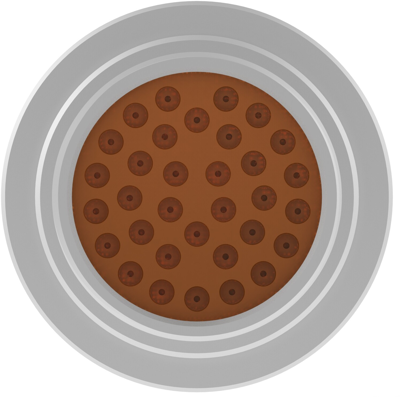

HD36-24-33PN-L005 DEUTSCH Automotive Power Connectors Image 3

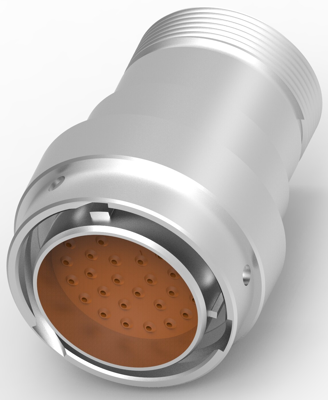

HD36-24-33PN-L005 DEUTSCH Automotive Power Connectors Image 4

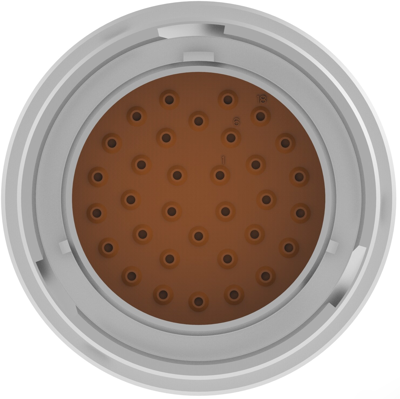

HD36-24-33PN-L005 DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
70.3171 € *
Available in 5 Days: 1,027 pcs. - if ordered today
Total Price:
70.32 € *
Price list
Quantity
Price per unit*
1 pcs.
70.3171 €
2 pcs.
65.7713 €
5 pcs.
61.7848 €
10 pcs.
57.4413 €
*incl. VAT plus shipping costs
Subject to prior sale

Sealed connector, HD36-24-33PN-L005, DEUTSCH

The HD36-24-33PN-L005 is a heavy duty, environmentally sealed, multi-pin circular connector and is designed specifically for the truck, bus, and off-highway industry. This product is constructed from a metal shell developed to meet the needs of the heavy duty equipment and transportation industries.

Features

  • Circular, aluminum housing
  • Quick connect-disconnect bayonet coupling
  • Single hole bulkhead mounting
  • Rear insertion/rear removal contact system
Technical specifications
Filter Property Value
Type of locking Yes
Version straight
Connection crimp connection
Contact type socket
Rated voltage 250 V
Pin number 33 pole
Colour natural
Rated current 7.5 A
Logistics
Property Value
Country of origin GB
Customs tariff number 85389099
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
