HD34-18-6SN | DEUTSCH
Socket, 6 pole, straight, natural, HD34-18-6SN
Unit Price (€ / pc.)
52.6813 € *
Available in 5 Days: 17 pcs. - if ordered today
Total Price:
210.73 € *
Price list
Quantity
Price per unit*
4 pcs.
52.6813 €
10 pcs.
43.7325 €
*incl. VAT plus shipping costs
Subject to prior sale

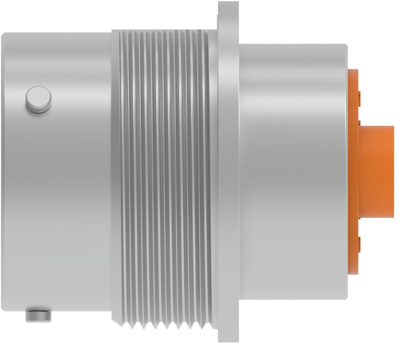

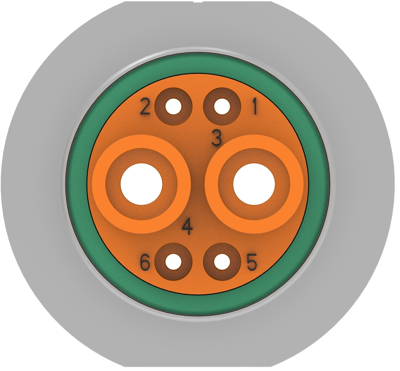

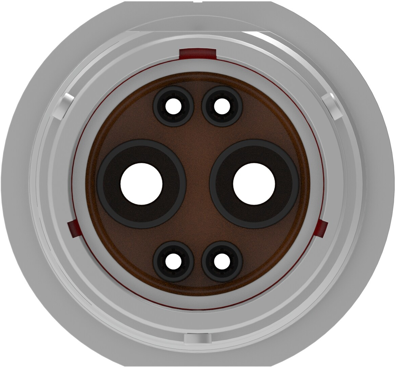

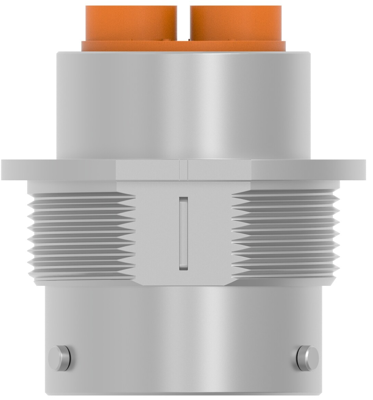

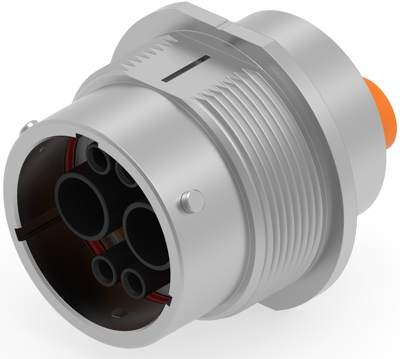

Sealed connector, HD34-18-6SN, DEUTSCH
The HD34-18-6SN is a heavy duty, environmentally sealed, multi-pin circular connector and is designed specifically for the truck, bus, and off-highway industry. This product is constructed from a metal shell developed to meet the needs of the heavy duty equipment and transportation industries.
Features
- Circular, aluminum housing
- Quick connect-disconnect bayonet coupling
- Single hole bulkhead mounting
- Rear insertion/rear removal contact system
Technical specifications
| Colour | natural | |
| Type of locking | Yes | |
| Pin number | 6 pole | |
| Version | straight | |
| Connection | crimp connection | |
| Contact type | socket | |
| Rated voltage | 250 V |
Download
Logistics
| Country of origin | MX |
| Customs tariff number | 85389099 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
