HD16-9-96S-C016 | DEUTSCH

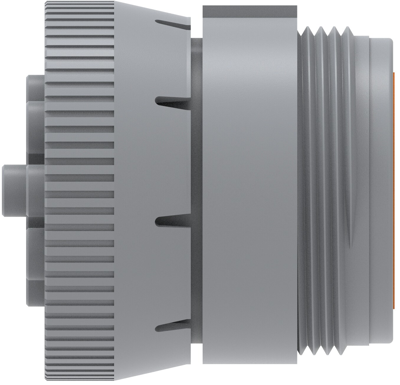

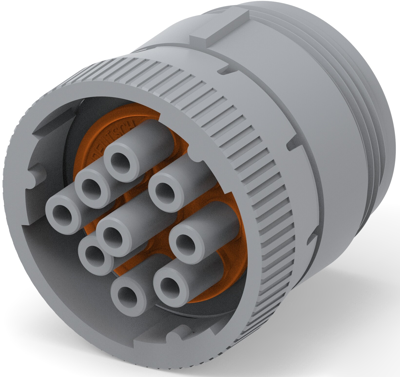

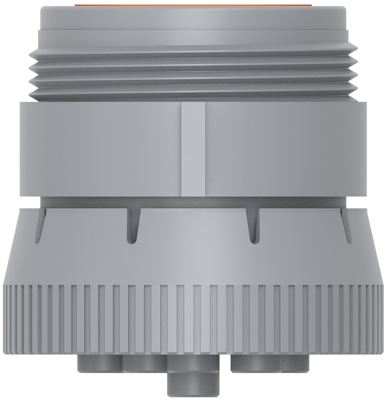

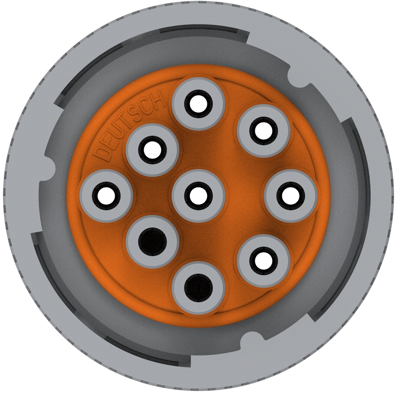

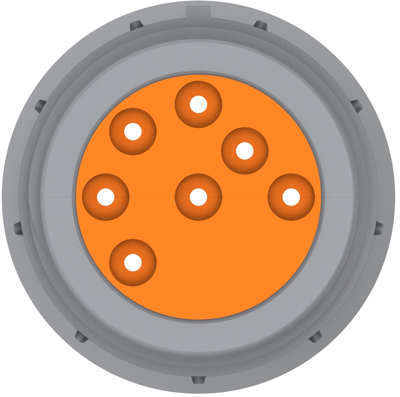

Socket, 9 pole, straight, gray, HD16-9-96S-C016
Unit Price (€ / pc.)
20.8250 € *
Available in 5 Days: 73 pcs. - if ordered today
Total Price:
20.83 € *
Price list
Quantity
Price per unit*
1 pcs.
20.8250 €
10 pcs.
19.3375 €
25 pcs.
18.0523 €
50 pcs.
16.4101 €
*incl. VAT plus shipping costs
Subject to prior sale
Sealed connector, HD16-9-96S-C016, DEUTSCH
The HD16-9-96S-C016 is an environmentally sealed, thermoplastic, and cylindrical connector. It is properly wired and mated the connection will withstand immersion under three feet of water without loss of electronic qualities or leakage.
Features
- Circular, thermoplastic housing
- Coupling ring for mating
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Type of locking | Yes | |
| Version | straight | |
| Connection | crimp connection | |
| Contact type | socket | |
| Rated voltage | 250 V | |
| Pin number | 9 pole | |
| Colour | gray | |
| Rated current | 13 A |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | MX |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
