DTP06-4S | DEUTSCH

Socket, 4 pole, straight, 2 rows, gray, DTP06-4S

Order No.: 72P2703
EAN: 4099889540116
MPN:
DTP06-4S
Series: DTP

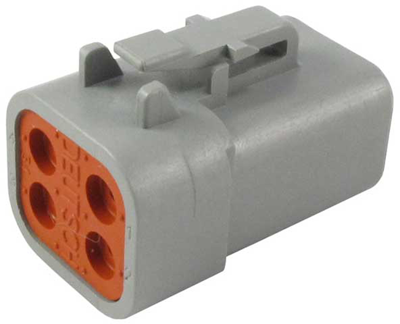

DTP06-4S DEUTSCH Automotive Power Connectors Image 1

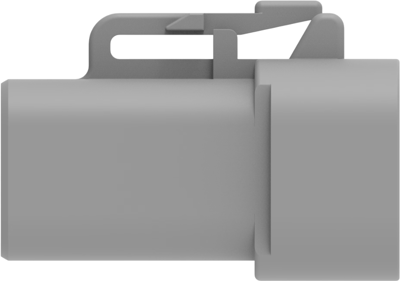

DTP06-4S DEUTSCH Automotive Power Connectors Image 2

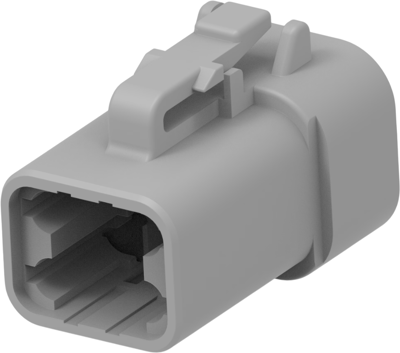

DTP06-4S DEUTSCH Automotive Power Connectors Image 3

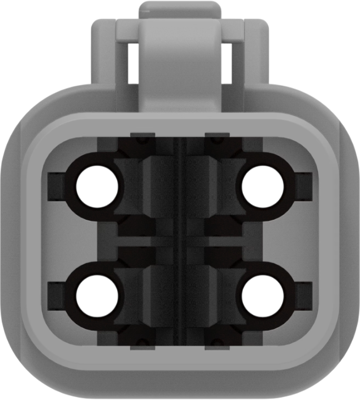

DTP06-4S DEUTSCH Automotive Power Connectors Image 4

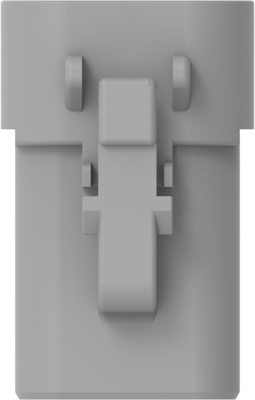

DTP06-4S DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
6.4379 € *
Available: 29 pcs.
Available in 5 Days: 208 pcs. - if ordered today
Total Price:
6.44 € *
Price list
Quantity
Price per unit*
1 pcs.
6.4379 €
10 pcs.
5.9381 €
50 pcs.
5.3312 €
100 pcs.
4.7957 €
*incl. VAT plus shipping costs
Subject to prior sale

Sealed connector, DTP06-4S, DEUTSCH

The DTP06-4S is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It was developed to fill the need for higher amperage, multi-pin connector.

Features

  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedge locks confirm contact alignment and retention
Technical specifications
Number of rows 2
Grid 6.71 mm
Pin number 4 pole
Connection crimp connection
Type of locking Yes
Colour gray
Rated current 25 A
Contact type socket
Version straight
Rated voltage 200 V
Logistics
Customs tariff number 85366990
Country of origin US
Compliance
SVHC free No
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
RoHS conform Yes
Date of RoHS guidelines 3/31/15
