DTP04-4P | DEUTSCH

Socket, 4 pole, straight, 2 rows, gray, DTP04-4P

Order No.: 72P2698
EAN: 4099889538946
MPN:
DTP04-4P
Series: DTP

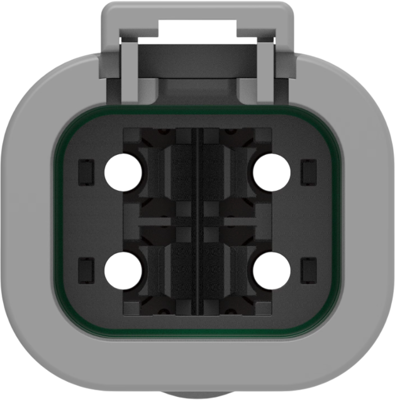

DTP04-4P DEUTSCH Automotive Power Connectors Image 1

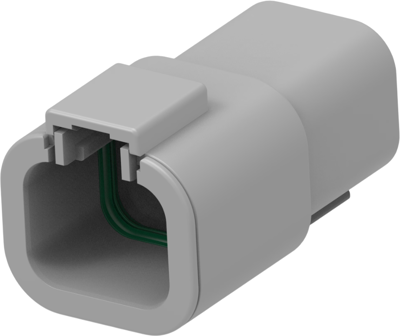

DTP04-4P DEUTSCH Automotive Power Connectors Image 2

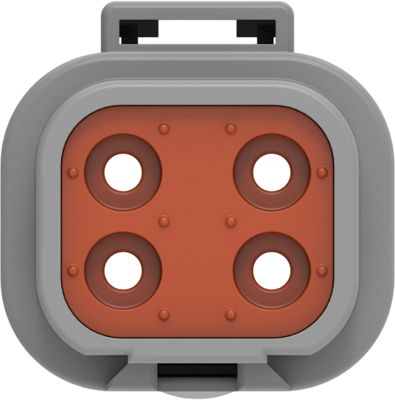

DTP04-4P DEUTSCH Automotive Power Connectors Image 3

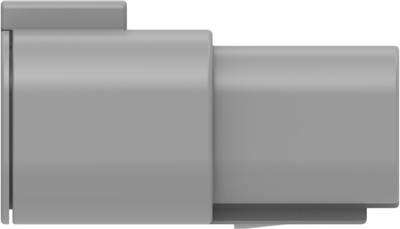

DTP04-4P DEUTSCH Automotive Power Connectors Image 4

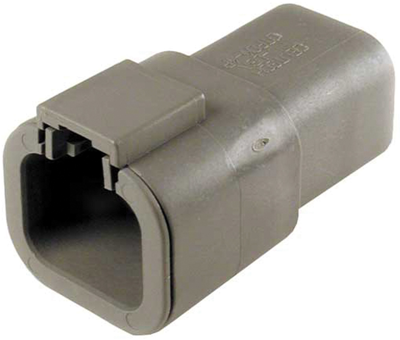

DTP04-4P DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
7.8897 € *
Available in 5 Days: 350 pcs. - if ordered today
Total Price:
7.89 € *
Price list
Quantity
Price per unit*
1 pcs.
7.8897 €
10 pcs.
7.3304 €
25 pcs.
6.8425 €
50 pcs.
6.2237 €
*incl. VAT plus shipping costs
Subject to prior sale

Sealed connector, DTP04-4P, DEUTSCH

The DTP04-4P is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It was developed to fill the need for higher amperage, multi-pin connector.

Features

  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedge locks confirm contact alignment and retention
Technical specifications
Filter Property Value
Colour gray
Grid 6.71 mm
Number of rows 2
Contact type socket
Type of locking Yes
Version straight
Rated current 25 A
Pin number 4 pole
Rated voltage 200 V
Connection crimp connection
Logistics
Property Value
Customs tariff number 85389099
Country of origin MX
Compliance
Property Value
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
RoHS conform Yes
Date of RoHS guidelines 3/31/15
SVHC free No
