DTP04-4P-P059 | DEUTSCH

Socket, 4 pole, angled, 2 rows, green, DTP04-4P-P059

Order No.: 72P2701
EAN: 4099889540093
MPN:
DTP04-4P-P059
Series: DTP

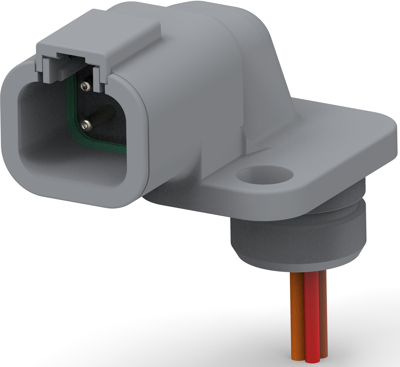

DTP04-4P-P059 DEUTSCH Automotive Power Connectors Image 1

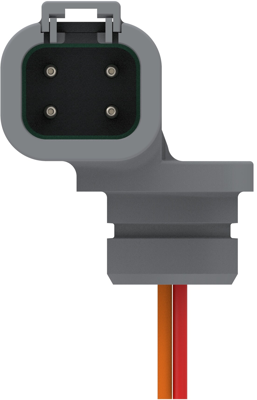

DTP04-4P-P059 DEUTSCH Automotive Power Connectors Image 2

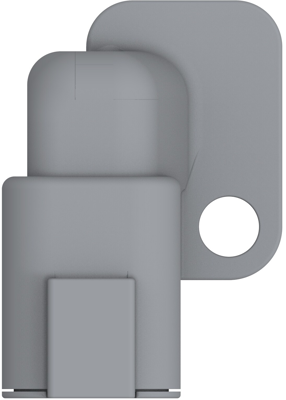

DTP04-4P-P059 DEUTSCH Automotive Power Connectors Image 3

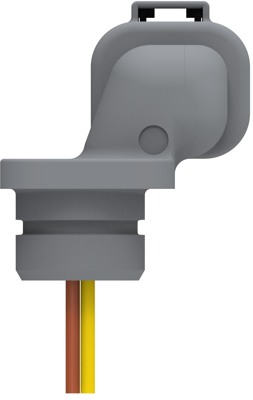

DTP04-4P-P059 DEUTSCH Automotive Power Connectors Image 4

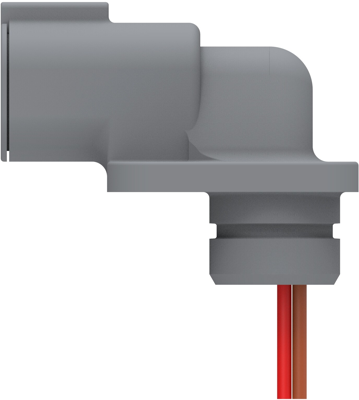

DTP04-4P-P059 DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
23.5977 € *
Available in 5 Days: 99 pcs. - if ordered today
Total Price:
212.38 € *
Price list
Quantity
Price per unit*
9 pcs.
23.5977 €
22 pcs.
22.6695 €
*incl. VAT plus shipping costs
Subject to prior sale

Sealed connector, DTP04-4P-P059, DEUTSCH

The DTP04-4P-P059 is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It was developed to fill the need for higher amperage, multi-pin connector.

Features

  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedge locks confirm contact alignment and retention
Technical specifications
Filter Property Value
Grid 6.71 mm
Version angled
Pin number 4 pole
Contact type socket
Number of rows 2
Colour green
Rated current 25 A
Rated voltage 200 V
Logistics
Property Value
Customs tariff number 85389099
Country of origin MX
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
