DTP04-4P-L012 | DEUTSCH

Socket, 4 pole, straight, 2 rows, gray, DTP04-4P-L012

Order No.: 72P2700
MPN:
DTP04-4P-L012
Series: DTP

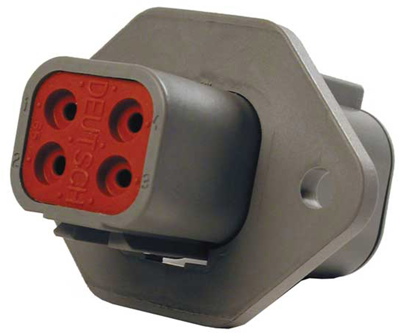

DTP04-4P-L012 DEUTSCH Automotive Power Connectors Image 1

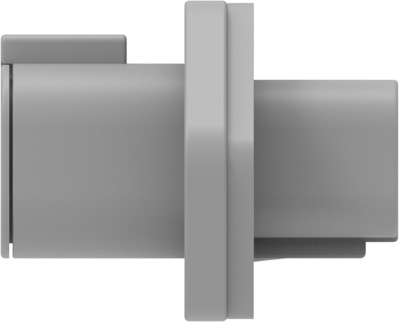

DTP04-4P-L012 DEUTSCH Automotive Power Connectors Image 2

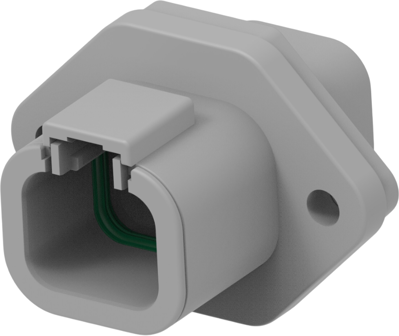

DTP04-4P-L012 DEUTSCH Automotive Power Connectors Image 3

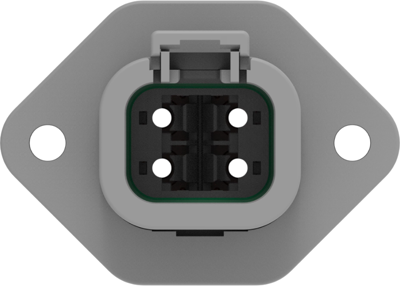

DTP04-4P-L012 DEUTSCH Automotive Power Connectors Image 4

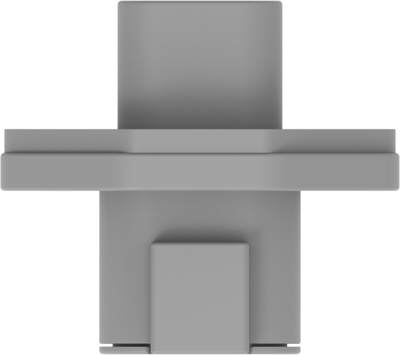

DTP04-4P-L012 DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
12.9472 € *
Standard delivery time from the manufacturer is: 16 Weeks
Total Price:
12.95 € *
Price list
Quantity
Price per unit*
1 pcs.
12.9472 €
10 pcs.
12.0309 €
25 pcs.
11.2217 €
50 pcs.
10.2102 €
*incl. VAT plus shipping costs
Subject to prior sale

Sealed connector, DTP04-4P-L012, DEUTSCH

The DTP04-4P-L012 is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It was developed to fill the need for higher amperage, multi-pin connector.

Features

  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedge locks confirm contact alignment and retention
Technical specifications
Filter Property Value
Type of locking Yes
Version straight
Connection crimp connection
Number of rows 2
Contact type socket
Rated voltage 200 V
Pin number 4 pole
Grid 6.71 mm
Colour gray
Rated current 25 A
Logistics
Property Value
Country of origin MX
Customs tariff number 85389099
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free No
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
RoHS conform Yes
