DTM06-4S | DEUTSCH

Socket, 4 pole, straight, 2 rows, gray, DTM06-4S

Order No.: 72P2682
EAN: 4099889519594
MPN:
DTM06-4S
Series: DTM

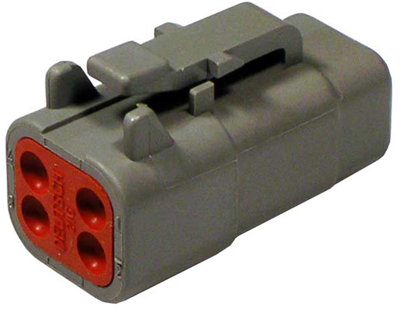

DTM06-4S DEUTSCH Automotive Power Connectors Image 1

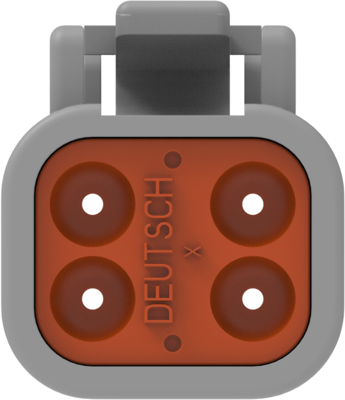

DTM06-4S DEUTSCH Automotive Power Connectors Image 2

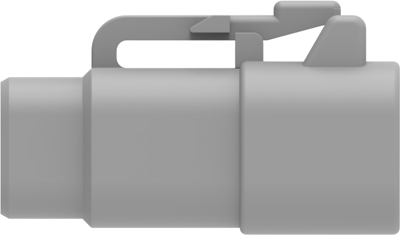

DTM06-4S DEUTSCH Automotive Power Connectors Image 3

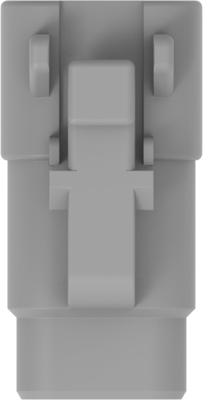

DTM06-4S DEUTSCH Automotive Power Connectors Image 4

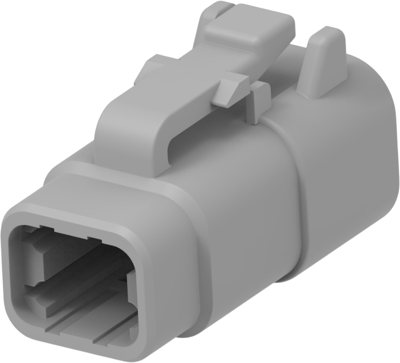

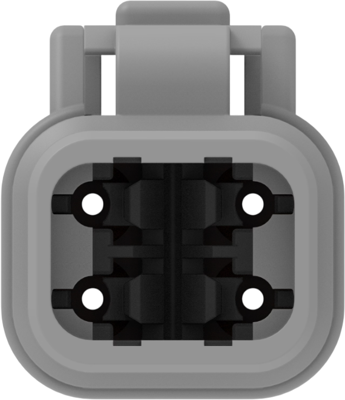

DTM06-4S DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
3.6295 € *
Available in 5 Days: 1,385 pcs. - if ordered today
Total Price:
3.63 € *
Price list
Quantity
Price per unit*
1 pcs.
3.6295 €
10 pcs.
3.3439 €
50 pcs.
2.9988 €
100 pcs.
2.7132 €
*incl. VAT plus shipping costs
Subject to prior sale

Sealed connector, DTM06-4S, DEUTSCH

The DTM06-4S is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers solutions to your smaller wire gauge applications. This product line was developed to fill the need for lower amperage, multipin connector.

Features

  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedge locks confirm contact alignment and retention
Technical specifications
Number of rows 2
Grid 4.19 mm
Pin number 4 pole
Connection crimp connection
Type of locking Yes
Colour gray
Rated current 7.5 A
Contact type socket
Version straight
Rated voltage 250 V
Logistics
Customs tariff number 85369010
Country of origin MX
Compliance
SVHC free No
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
RoHS conform Yes
Date of RoHS guidelines 3/31/15
