DTM06-3S-E007 | DEUTSCH

Socket, 3 pole, straight, 1 row, gray, DTM06-3S-E007

Order No.: 72P2681
EAN: 4099889516340
MPN:
DTM06-3S-E007
Series: DTM

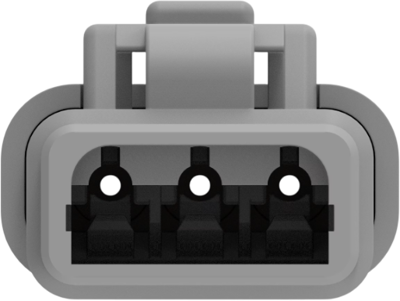

DTM06-3S-E007 DEUTSCH Automotive Power Connectors Image 1

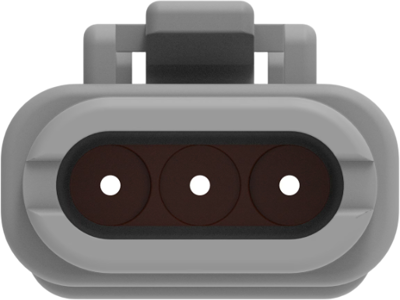

DTM06-3S-E007 DEUTSCH Automotive Power Connectors Image 2

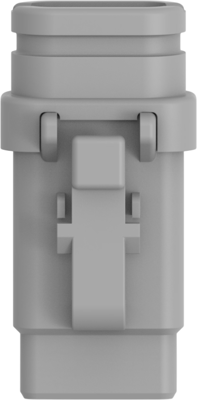

DTM06-3S-E007 DEUTSCH Automotive Power Connectors Image 3

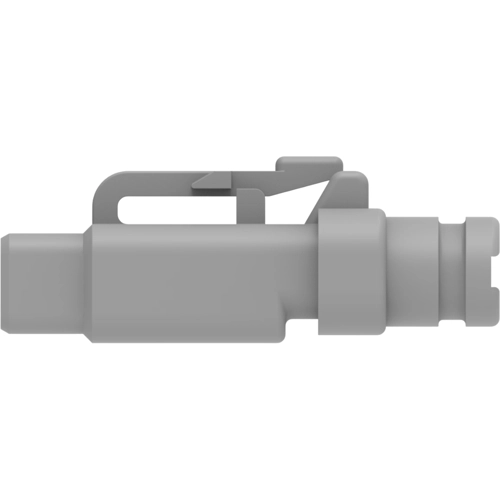

DTM06-3S-E007 DEUTSCH Automotive Power Connectors Image 4

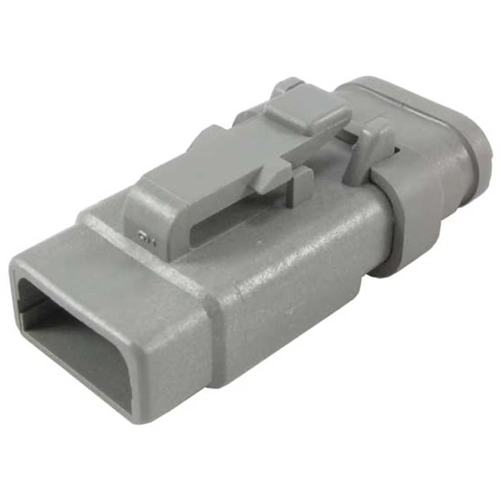

DTM06-3S-E007 DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
4.0698 € *
Available in 5 Days: 2,612 pcs. - if ordered today
Total Price:
4.07 € *
Price list
Quantity
Price per unit*
1 pcs.
4.0698 €
10 pcs.
3.7842 €
25 pcs.
3.5343 €
50 pcs.
3.2130 €
*incl. VAT plus shipping costs
Subject to prior sale

Sealed connector, DTM06-3S-E007, DEUTSCH

The DTM06-3S-E007 is a sealed connector for cable to cable and cable to board applications. This product is used in harsh environment applications where even a small degradation in connection may be critical. Thermoplastic housing offers a wide operating temperature range and silicone rear wire and interface seal allows the connector to withstand conditions of extreme temperature and moisture. It offers solutions to your smaller wire gauge applications. This product line was developed to fill the need for lower amperage, multipin connector.

Features

  • Rectangular, thermoplastic housing
  • Integrated latch for mating
  • Wedge locks confirm contact alignment and retention
Technical specifications
Filter Property Value
Grid 4.19 mm
Connection crimp connection
Version straight
Pin number 3 pole
Contact type socket
Type of locking Yes
Number of rows 1
Colour gray
Rated current 7.5 A
Rated voltage 250 V
Logistics
Property Value
Customs tariff number 85389099
Country of origin MX
Compliance
Property Value
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
