DTM04-6P-E004 | DEUTSCH

Socket, equipped, 6 pole, straight, 2 rows, black, DTM04-6P-E004

Order No.: 36P0052
EAN: 4099889892116
MPN:
DTM04-6P-E004
Series: DTM

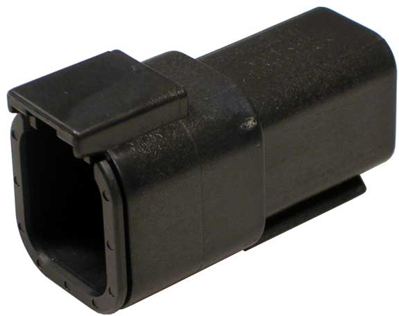

DTM04-6P-E004 DEUTSCH Automotive Power Connectors Image 1

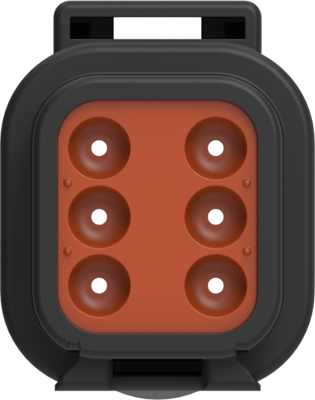

DTM04-6P-E004 DEUTSCH Automotive Power Connectors Image 2

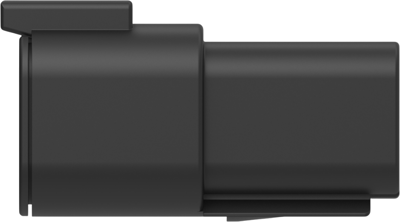

DTM04-6P-E004 DEUTSCH Automotive Power Connectors Image 3

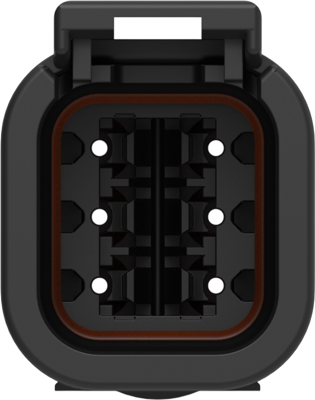

DTM04-6P-E004 DEUTSCH Automotive Power Connectors Image 4

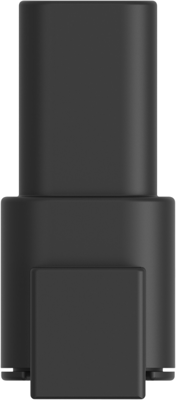

DTM04-6P-E004 DEUTSCH Automotive Power Connectors Image 5
Image may differ
Unit Price (€ / pc.)
17.0289 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
17.03 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
17.0289 €

Housing terminals, DTM04-6P-E004, DEUTSCH

Housing for male terminals, Wire-to-wire, 6 Position, 4.19 mm Centerline, Sealable, Black, Wire & cable, Power & signal, Hybrid

Technical specifications
Version straight
Colour black
Type of locking Yes
Rated voltage 250 V
Pin number 6 pole
Connection crimp connection
Grid 4.19 mm
Number of rows 2
Rated current 7.5 A
Contact type socket
Additional parts equipped
Logistics
Customs tariff number 85389099
Compliance
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
Substance description Octamethylcyclotetrasiloxane, decamethylcyclopentasiloxane, dodecamethylcyclohexasiloxane
